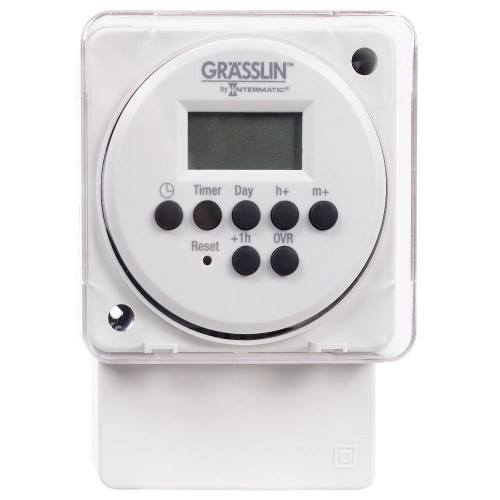

Intermatic FM1D14A-12
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.15 A, 1-Circuit Timer Module
Intermatic FM1D14A-12 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cut-Out Height (mm)
- 0
- Cut-Out Width (mm)
- 0
- Electronic Ballast (NO)
- 4.9 A, 120 VAC, 50/60 Hz
- General Purpose (NC)
- 15 A, 277 VAC, 50/60 Hz
- General Purpose (NO)
- 15 A, 277 VAC, 50/60 Hz
- Input Voltages Display
- 12 VDC, 50/60 Hz
- Magnetic Ballast (NO)
- 8 A, 277 VAC, 50/60 Hz
- Maximum Power Consumption (VA)
- 4
- Maximum Power Consumption (W)
- 1.4 W
- Mechanism Type
- Digital/Electrical
- Motor (NC)
- 1/2 HP, 120/240 VAC, 50/60 Hz 10 FLA, 60 LRA, 250 VAC, 50/60 Hz
- Motor (NO)
- 1 HP, 250 VAC, 50/60 Hz 1/2 HP, 120 VAC, 50/60 Hz 10 FLA, 60 LRA, 250 VAC, 50/60 Hz
- Operating Humidity
- 0-95% RH, Non-condensing
- Operating Temperature Max (C)
- 55
- Operating Temperature Max (F)
- 131
- Operating Temperature Min (C)
- -40
- Operating Temperature Min (F)
- -40
- Operation Mode
- 24-hour, 7-day
- Resistive (NC)
- 12 A, 24 VDC, 50/60 Hz
- Shipping Weight (kg)
- 0.24
- Shipping Weight (lbs)
- 0.529
- Switch Type
- SPDT
- Tungsten (NO)
- 1000 W, 120 VAC, 50/60 Hz
- Warranty
- 1-year limited
- Wire Size Max
- #10 AWG
- Wire Size Min
- #24 AWG
