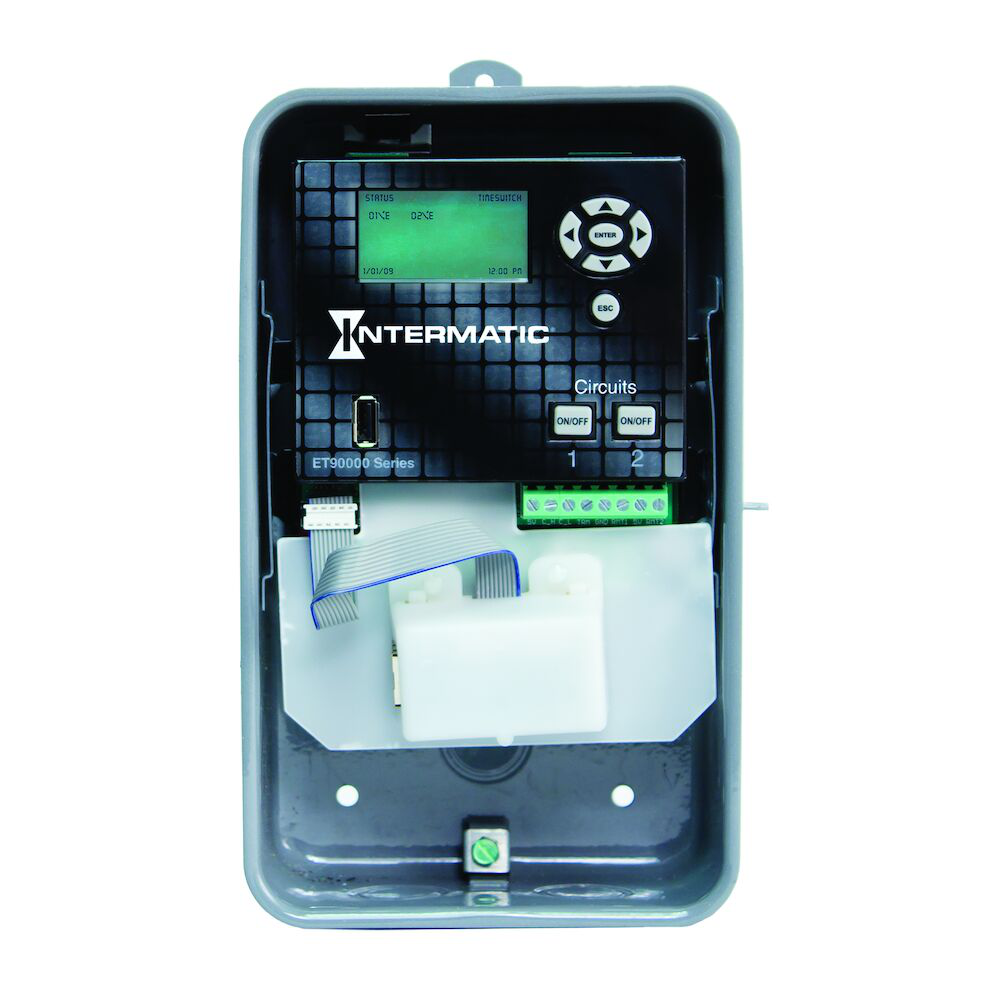

Intermatic ET90215CRE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates.Astronomic 365-Day 2-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 2-SPDT, Outdoor Metal Enclosure, Ethernet Included
Intermatic ET90215CRE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Electronic Ballast Load Ratings NO Ranges
- 8 A, 120-277 VAC, 50/60 Hz
- General Purpose Load Ratings NC Ranges
- 10 A, 12-240 VAC, 50/60 Hz
- General Purpose Load Ratings NO Ranges
- 30 A, 12-240 VAC, 50/60 Hz
- Magnetic Ballast Load Ratings NC Ranges
- 3 A, 120-277 VAC, 50/60 Hz
- Magnetic Ballast Load Ratings NO Ranges
- 20 A, 120-277 VAC, 50/60 Hz
- Magnetic Ballast NC Load Ratings
- 3 A, 120 VAC, 50 Hz; 3 A, 208 VAC, 50 Hz; 3 A, 240 VAC, 50 Hz; 3 A, 277 VAC, 50 Hz; 3 A, 120 VAC, 60 Hz; 3 A, 208 VAC, 60 Hz; 3 A, 240 VAC, 60 Hz; 3 A, 277 VAC, 60 Hz
- Magnetic Ballast NO Load Ratings
- 20 A, 120 VAC, 50 Hz; 20 A, 208 VAC, 50 Hz; 20 A, 240 VAC, 50 Hz; 20 A, 277 VAC, 50 Hz; 20 A, 120 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz
- Motor Load Ratings NC Ranges
- 1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz
- Motor Load Ratings NO Ranges
- 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
- Pilot Duty Load Ratings NC Ranges
- 275 VA, 120-240 VAC, 50/60 Hz
- Pilot Duty Load Ratings NO Ranges
- 470 VA, 120-240 VAC, 50/60 Hz
- Pilot Duty NC Load Ratings
- 275 VA, 120 VAC, 50 Hz; 275 VA, 208 VAC, 50 Hz; 275 VA, 240 VAC, 50 Hz; 275 VA, 120 VAC, 60 Hz; 275 VA, 208 VAC, 60 Hz; 275 VA, 240 VAC, 60 Hz
- Pilot Duty NO Load Ratings
- 470 VA, 120 VAC, 50 Hz; 470 VA, 208 VAC, 50 Hz; 470 VA, 240 VAC, 50 Hz; 470 VA, 120 VAC, 60 Hz; 470 VA, 208 VAC, 60 Hz; 470 VA, 240 VAC, 60 Hz
- Resistive Load Ratings NC Ranges
- 10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz
- Resistive Load Ratings NO Ranges
- 20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz
- Resistive NC Load Ratings
- 10 A, 28 VDC; 10 A, 12 VAC, 50 Hz; 10 A, 18 VAC, 50 Hz; 10 A, 24 VAC, 50 Hz; 10 A, 120 VAC, 50 Hz; 10 A, 208 VAC, 50 Hz; 10 A, 240 VAC, 50 Hz; 10 A, 12 VAC, 60 Hz; 10 A, 18 VAC, 60 Hz; 10 A, 24 VAC, 60 Hz; 10 A, 120 VAC, 60 Hz; 10 A, 208 VAC, 60 Hz; 10 A, 240 VAC, 60 Hz
- Resistive NO Load Ratings
- 20 A @ 28 VDC; 30 A, 12 VAC, 50 Hz; 30 A, 18 VAC, 50 Hz; 30 A, 24 VAC, 50 Hz; 30 A, 120 VAC, 50 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 12 VAC, 60 Hz; 30 A, 18 VAC, 60 Hz; 30 A, 24 VAC, 60 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz
- Tungsten Load Ratings NO Ranges
- 5 A, 12-120 VAC, 50/60 Hz
Specifications
- Applications
- Indoor Lighting Control; Outdoor Lighting Control; Timing/Scheduling ON/OFF; Machinery & Pump Controls
- Backup Protection Time
- 100 Hour
- Backup Restoration Time
- 30 Minutes
- Backup Type
- Supercapacitor
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Data Transfer Options
- Ethernet Optional/USB
- Daylight Saving Adjustment
- Automatic
- Electronic Ballast NO Load Ratings
- 8 A, 120 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz; 8 A, 208 VAC, 50 Hz; 8 A, 208 VAC, 60 Hz; 8 A, 240 VAC, 50 Hz; 8 A, 240 VAC, 60 Hz; 8 A, 277 VAC, 50 Hz; 8 A, 277 VAC, 60 Hz
- Electronic Series
- ET90000 Series
- Enclosure Type
- Outdoor type 3R metal
- General Purpose NC Load Ratings
- 10 A, 12 VAC, 50 Hz; 10 A, 18 VAC, 50 Hz; 10 A, 24 VAC, 50 Hz; 10 A, 120 VAC, 50 Hz; 10 A, 208 VAC, 50 Hz; 10 A, 240 VAC, 50 Hz; 10 A, 12 VAC, 60 Hz; 10 A, 18 VAC, 60 Hz; 10 A, 24 VAC, 60 Hz; 10 A, 120 VAC, 60 Hz; 10 A, 208 VAC, 60 Hz; 10 A, 240 VAC, 60 Hz
- General Purpose NO Load Ratings
- 30 A, 12 VAC, 50 Hz; 30 A, 18 VAC, 50 Hz; 30 A, 24 VAC, 50 Hz; 30 A, 120 VAC, 50 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 12 VAC, 60 Hz; 30 A, 18 VAC, 60 Hz; 30 A, 24 VAC, 60 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz
- Input Voltage Ranges
- 120-277 VAC, 50/60 Hz
- Lifecycle
- Production
- Market
- Commercial; Industrial; Utility
- Maximum On Off Operations
- 2000
- Maximum On Off Time
- 365 days
- Maximum Pulse Time
- 23 hours, 59 minutes
- Minimum On Off Time
- 1 Sec
- Minimum Pulse Time
- 1 sec
- Motor NC Load Ratings
- 1/4 HP, 120 VAC, 50 Hz; 1/2 HP, 240 VAC, 50 Hz; 1/4 HP, 120 VAC, 60 Hz; 1/2 HP, 240 VAC, 60 Hz
- Motor NO Load Ratings
- 1 HP, 120 VAC, 50 Hz; 2 HP, 240 VAC, 50 Hz; 1 HP, 120 VAC, 60 Hz; 2 HP, 240 VAC, 60 Hz
- Number Of Circuits
- 2
- On Off Operations
- 2000
- Operating Temperature Max
- 104°C
- 40°F
- Operating Temperature Min
- -40°C
- -40°F
- Operation Features
- Astronomic; Holiday
- Operation Mode
- 365 day
- Other Certifications
- Title 20
- Packaging Applications
- School Districts; Banks; Small Hotels; Franchises; Retail Stores; Municipalities; Parking Lots; Offices
- Power Consumption Max W
- 16 W
- Product Depth
- 3.6 in; 91 mm
- Product Height
- 9.6 in; 243 mm
- Product Width
- 5.7 in; 145 mm
- Setpoint Program Count
- 2000
- Solutions
- Lighting Control; Energy Savings; Security; Comfort & Convenience; Machinery & Pumps; Panel Integrators
- Switch Type
- 2xSPDT
- Tungsten NO Load Ratings
- 5 A, 12 VAC, 50 Hz; 5 A, 24 VAC, 50 Hz; 5 A, 50 VAC, 50 Hz; 5 A, 110 VAC, 50 Hz; 5 A, 115 VAC, 50 Hz; 5 A, 120 VAC, 50 Hz; 5 A, 12 VAC, 60 Hz; 5 A, 24 VAC, 60 Hz; 5 A, 50 VAC, 60 Hz; 5 A, 110 VAC, 60 Hz; 5 A, 115 VAC, 60 Hz; 5 A, 120 VAC, 60 Hz
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 120
- Voltage Selection Type
- Auto Voltage
- Warranty Period
- 3-Year limited
- Wiring Option
- Terminals
