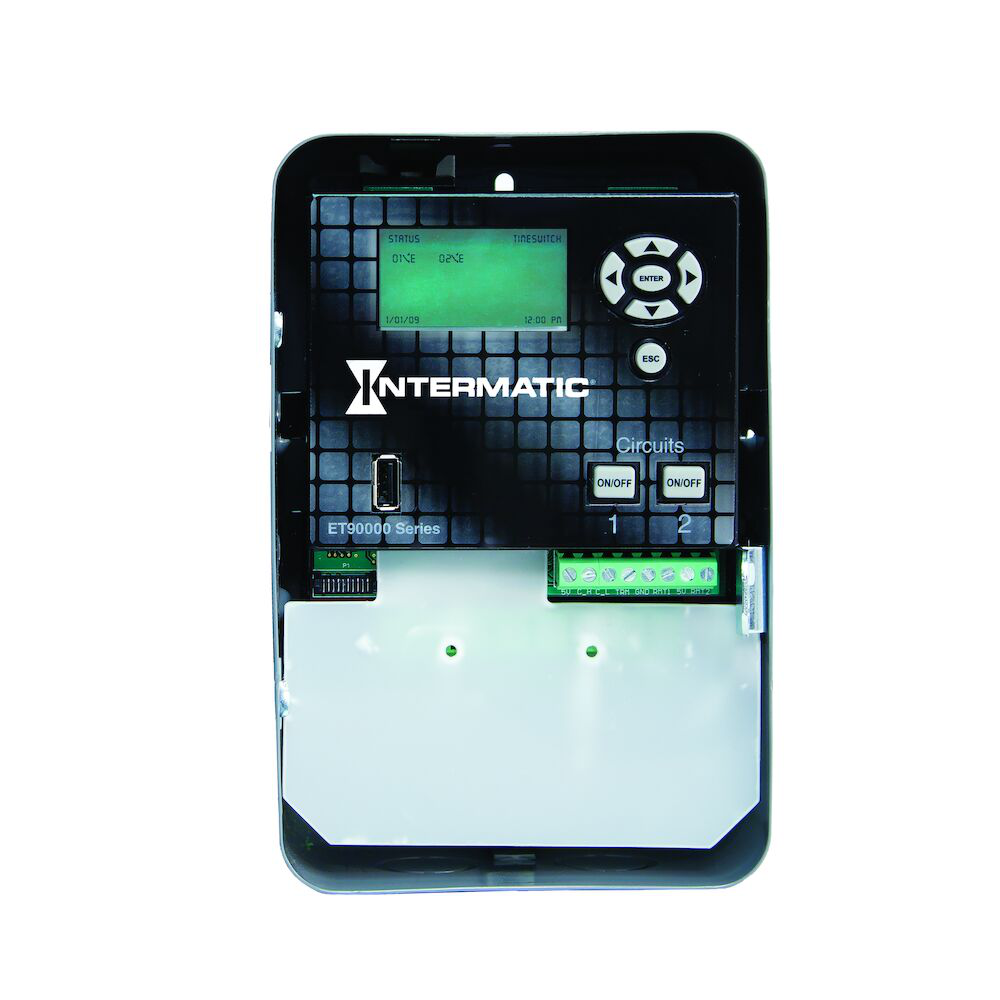

Intermatic ET90215C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates.Astronomic 365-Day 2-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 2-SPDT, Indoor Metal Enclosure, Ethernet Optional
Intermatic ET90215C is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Electronic Ballast Load Ratings NO Ranges
- 8 A, 120-277 VAC, 50/60 Hz
- General Purpose Load Ratings NC Ranges
- 10 A, 12-240 VAC, 50/60 Hz
- General Purpose Load Ratings NO Ranges
- 30 A, 12-240 VAC, 50/60 Hz
- Magnetic Ballast Load Ratings NC Ranges
- 3 A, 120-277 VAC, 50/60 Hz
- Magnetic Ballast Load Ratings NO Ranges
- 20 A, 120-277 VAC, 50/60 Hz
- Magnetic Ballast NC Load Ratings
- 3 A, 120 VAC, 50 Hz; 3 A, 208 VAC, 50 Hz; 3 A, 240 VAC, 50 Hz; 3 A, 277 VAC, 50 Hz; 3 A, 120 VAC, 60 Hz; 3 A, 208 VAC, 60 Hz; 3 A, 240 VAC, 60 Hz; 3 A, 277 VAC, 60 Hz
- Magnetic Ballast NO Load Ratings
- 20 A, 120 VAC, 50 Hz; 20 A, 208 VAC, 50 Hz; 20 A, 240 VAC, 50 Hz; 20 A, 277 VAC, 50 Hz; 20 A, 120 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz
- Motor Load Ratings NC Ranges
- 1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz
- Motor Load Ratings NO Ranges
- 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
- Pilot Duty Load Ratings NC Ranges
- 275 VA, 120-240 VAC, 50/60 Hz
- Pilot Duty Load Ratings NO Ranges
- 470 VA, 120-240 VAC, 50/60 Hz
- Pilot Duty NC Load Ratings
- 275 VA, 120 VAC, 50 Hz; 275 VA, 208 VAC, 50 Hz; 275 VA, 240 VAC, 50 Hz; 275 VA, 120 VAC, 60 Hz; 275 VA, 208 VAC, 60 Hz; 275 VA, 240 VAC, 60 Hz
- Pilot Duty NO Load Ratings
- 470 VA, 120 VAC, 50 Hz; 470 VA, 208 VAC, 50 Hz; 470 VA, 240 VAC, 50 Hz; 470 VA, 120 VAC, 60 Hz; 470 VA, 208 VAC, 60 Hz; 470 VA, 240 VAC, 60 Hz
- Resistive Load Ratings NC Ranges
- 10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz
- Resistive Load Ratings NO Ranges
- 20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz
- Resistive NC Load Ratings
- 10 A, 28 VDC; 10 A, 12 VAC, 50 Hz; 10 A, 18 VAC, 50 Hz; 10 A, 24 VAC, 50 Hz; 10 A, 120 VAC, 50 Hz; 10 A, 208 VAC, 50 Hz; 10 A, 240 VAC, 50 Hz; 10 A, 12 VAC, 60 Hz; 10 A, 18 VAC, 60 Hz; 10 A, 24 VAC, 60 Hz; 10 A, 120 VAC, 60 Hz; 10 A, 208 VAC, 60 Hz; 10 A, 240 VAC, 60 Hz
- Resistive NO Load Ratings
- 20 A @ 28 VDC; 30 A, 12 VAC, 50 Hz; 30 A, 18 VAC, 50 Hz; 30 A, 24 VAC, 50 Hz; 30 A, 120 VAC, 50 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 12 VAC, 60 Hz; 30 A, 18 VAC, 60 Hz; 30 A, 24 VAC, 60 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz
- Tungsten Load Ratings NO Ranges
- 5 A, 12-120 VAC, 50/60 Hz
Specifications
- Applications
- Indoor Lighting Control; Outdoor Lighting Control; Timing/Scheduling ON/OFF; Machinery & Pump Controls
- Backup Protection Time
- 100 Hour
- Backup Restoration Time
- 30 Minutes
- Backup Type
- Supercapacitor
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Data Transfer Options
- Ethernet Optional/USB
- Daylight Saving Adjustment
- Automatic
- Electronic Ballast NO Load Ratings
- 8 A, 120 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz; 8 A, 208 VAC, 50 Hz; 8 A, 208 VAC, 60 Hz; 8 A, 240 VAC, 50 Hz; 8 A, 240 VAC, 60 Hz; 8 A, 277 VAC, 50 Hz; 8 A, 277 VAC, 60 Hz
- Electronic Series
- ET90000 Series
- Enclosure Type
- Indoor type 1 metal
- General Purpose NC Load Ratings
- 10 A, 12 VAC, 50 Hz; 10 A, 18 VAC, 50 Hz; 10 A, 24 VAC, 50 Hz; 10 A, 120 VAC, 50 Hz; 10 A, 208 VAC, 50 Hz; 10 A, 240 VAC, 50 Hz; 10 A, 12 VAC, 60 Hz; 10 A, 18 VAC, 60 Hz; 10 A, 24 VAC, 60 Hz; 10 A, 120 VAC, 60 Hz; 10 A, 208 VAC, 60 Hz; 10 A, 240 VAC, 60 Hz
- General Purpose NO Load Ratings
- 30 A, 12 VAC, 50 Hz; 30 A, 18 VAC, 50 Hz; 30 A, 24 VAC, 50 Hz; 30 A, 120 VAC, 50 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 12 VAC, 60 Hz; 30 A, 18 VAC, 60 Hz; 30 A, 24 VAC, 60 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz
- Input Voltage Ranges
- 120-277 VAC, 50/60 Hz
- Lifecycle
- Production
- Market
- Commercial; Industrial; Utility
- Maximum On Off Operations
- 2000
- Maximum On Off Time
- 365 days
- Maximum Pulse Time
- 23 hours, 59 minutes
- Minimum On Off Time
- 1 Sec
- Minimum Pulse Time
- 1 sec
- Motor NC Load Ratings
- 1/4 HP, 120 VAC, 50 Hz; 1/2 HP, 240 VAC, 50 Hz; 1/4 HP, 120 VAC, 60 Hz; 1/2 HP, 240 VAC, 60 Hz
- Motor NO Load Ratings
- 1 HP, 120 VAC, 50 Hz; 2 HP, 240 VAC, 50 Hz; 1 HP, 120 VAC, 60 Hz; 2 HP, 240 VAC, 60 Hz
- Number Of Circuits
- 2
- On Off Operations
- 2000
- Operating Temperature Max
- 40°F
- 104°C
- Operating Temperature Min
- -40°C
- -40°F
- Operation Features
- Astronomic; Holiday
- Operation Mode
- 365 day
- Other Certifications
- Title 20
- Packaging Applications
- School Districts; Banks; Small Hotels; Franchises; Retail Stores; Municipalities; Parking Lots; Offices
- Power Consumption Max W
- 16 W
- Product Depth
- 3 in; 76 mm
- Product Height
- 7.8 in; 198 mm
- Product Width
- 5.1 in; 128 mm
- Setpoint Program Count
- 2000
- Solutions
- Lighting Control; Energy Savings; Security; Comfort & Convenience; Machinery & Pumps; Panel Integrators
- Switch Type
- 2xSPDT
- Tungsten NO Load Ratings
- 5 A, 12 VAC, 50 Hz; 5 A, 24 VAC, 50 Hz; 5 A, 50 VAC, 50 Hz; 5 A, 110 VAC, 50 Hz; 5 A, 115 VAC, 50 Hz; 5 A, 120 VAC, 50 Hz; 5 A, 12 VAC, 60 Hz; 5 A, 24 VAC, 60 Hz; 5 A, 50 VAC, 60 Hz; 5 A, 110 VAC, 60 Hz; 5 A, 115 VAC, 60 Hz; 5 A, 120 VAC, 60 Hz
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 120
- Voltage Selection Type
- Auto Voltage
- Warranty Period
- 3-Year limited
- Wire Size Max
- #6 AWG
- Wire Size Min
- #20 AWG
- Wiring Option
- Terminals
