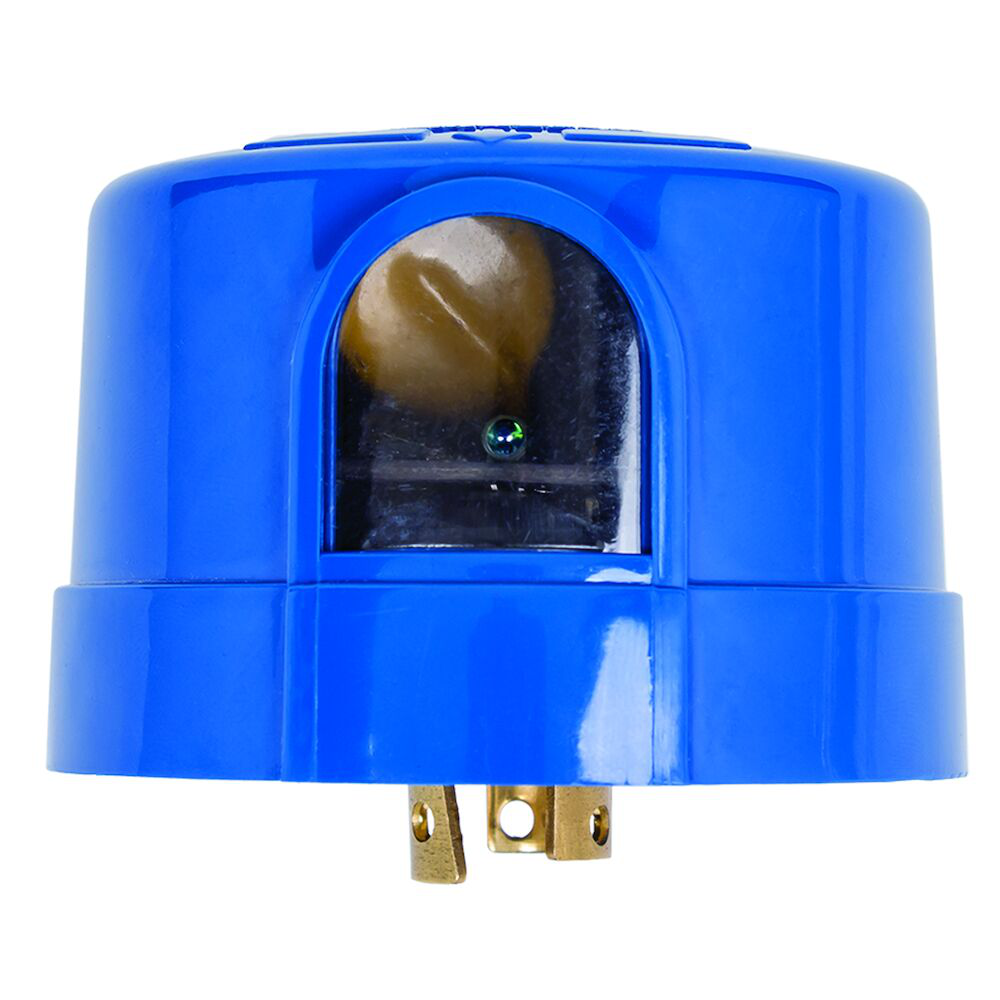

Intermatic ELC4536
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
LED-compatible photocontrol features a 10-year life expectancy. Ideal for single fixture control of smaller LED fixtures that require a cost-effective solution.NightFox™ Standard Grade Locking Type Electronic Photocontrol, 120-277 V
Intermatic ELC4536 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Electronic Ballast Load Ratings
- 2 A, 120 VAC, 50 Hz; 2 A, 208 VAC, 50 Hz; 2 A, 240 VAC, 50 Hz; 2 A, 277 VAC, 50 Hz; 2 A, 120 VAC, 60 Hz; 2 A, 208 VAC, 60 Hz; 2 A, 240 VAC, 60 Hz; 2 A, 277 VAC, 60 Hz
- Electronic Ballast Load Ratings Ranges
- 2 A, 120-277 VAC, 50/60 Hz
- Magnetic Ballast Load Ratings
- 1800 VA
- Magnetic Ballast Load Ratings Ranges
- 1800 VA
- Tungsten Load Ratings
- 1000 W
- Tungsten Load Ratings Ranges
- 1000 W
Materials
- Housing Material
- Polycarbonate with Acrylic Window
Specifications
- Activation Off
- 2.25 fc
- Activation On
- 1.5 fc
- Application Compatibilities
- LED; Incandescent; HID
- Applications
- Outdoor Lighting Control
- Country of Origin
- Mexico
- Cover Color
- Blue
- Expected Lifetime Operations
- 5000
- Expected Lifetime Years
- 10
- Fail Mode
- ON
- Input Voltage Ranges
- 120-277 VAC, 50/60 Hz
- Lifecycle
- Production
- Market
- Commercial; Utility; Industrial
- Operating Temperature Max
- 70°F
- 158°C
- Operating Temperature Min
- -40°F
- -40°C
- Other Certifications
- Title 20; Ansi C136.10
- Packaging Applications
- Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
- Photocontrol Photocell Type
- Silicon Diode
- Photocontrol Sensor Location
- Side
- Photocontrol Style
- Locking type
- Photocontrol Switch Type
- Relay
- Photocontrol Type
- Electronic
- Product Diameter
- 85.8 mm
- 3.375 in; 85.8 mm
- Product Height
- 2 3/4 in; 69.9 mm
- RoHS Certification
- Yes
- Sensor Time Delay
- Instant ON; 2 sec to 5 sec OFF
- Solutions
- Lighting Control; Panel Integrators
- Surge Protection Technology
- 510 J MOV
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 2016
- Usage Environments
- Outdoor
- Warranty Period
- 6-Year limited
