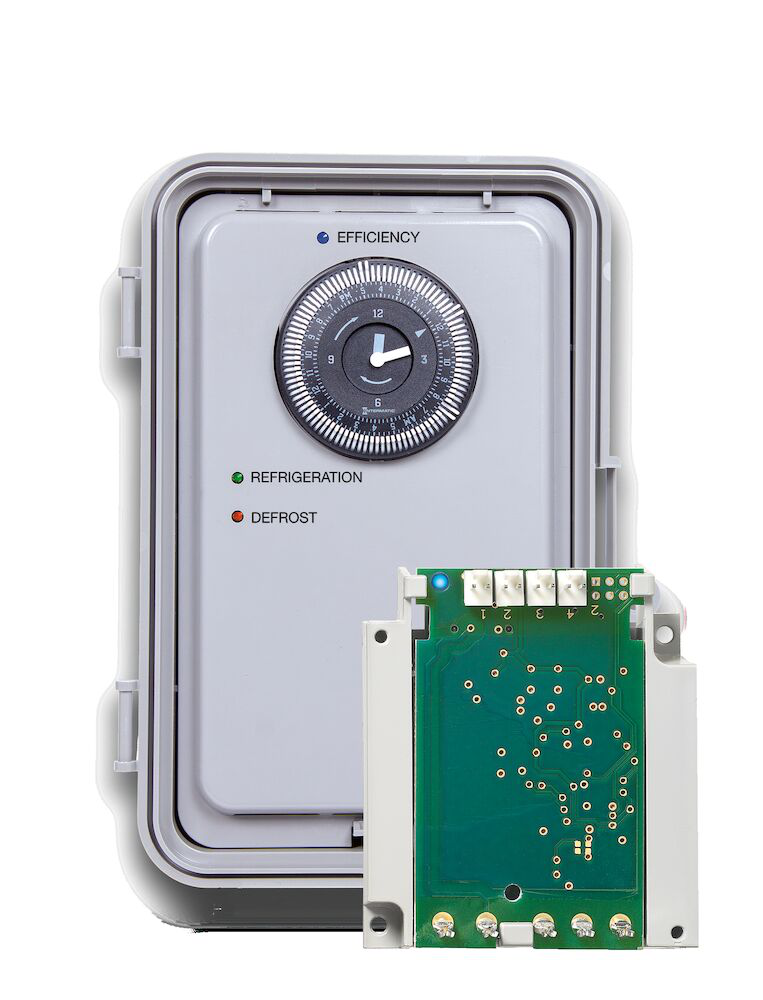

Intermatic DDT40
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.Complete Adaptive Defrost Refrigeration Time Control with ICUBE™ Module, Sensor, and Type 3R Enclosure
Intermatic DDT40 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Motor Load Ratings
- 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC
- Resistive Load Ratings
- 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
- Resistive Load Ratings Ranges
- 40 A, 120-240 VAC, 60 Hz
Specifications
- Application Compatibilities
- Commercial Refrigeration; Walk-in Cooler; Walk-in Freezer
- Applications
- Walk-in Refrigeration Cooler/Freezer
- Country of Origin
- Mexico
- Enclosure Type
- Outdoor type 3R plastic
- Has Captive Trippers CVL
- Yes
- Has Realtime Clock Face CVL
- Yes
- Input Voltage Ranges
- Auto Voltage 120-240 VAC, 60 Hz
- LED Defrost Indicator
- Green; Red
- LED Diagnostics And Efficiency Indicator
- Blue
- Lifecycle
- Production
- Market
- Commercial
- Maximum On Off Time
- 23 hours, 45 min
- Mechanism Type
- Electromechanical
- Minimum On Off Time
- 15 min
- Mounting Options
- Bracket
- On Off Operations
- 48
- Operating Humidity
- 0-95% RH, Non-condensing
- Operating Temperature Max
- 55°F
- 131°C
- Operating Temperature Min
- -40°F
- -40°C
- Packaging Applications
- Hospitals; Universities; Convenience Stores; Restaurants; Food Storage Warehouses; Food Processing Facilities; Food Service Facilities; Nursing Homes; Medium and Low-Temperature Commercial Refrigeration Systems; Healthcare Facilities
- Product Depth
- 2 15/16 in; 74.61 mm
- Product Height
- 8 3/4 in; 222.25 mm
- Product Width
- 6 in; 152.4 mm
- Refrigeration LED Indicator
- Green; Red
- RoHS Certification
- Yes
- Solutions
- Refrigeration
- Switch Type
- 1 SPDT, 1 NC SPST
- Thermistor Rating
- 10 K Ω @ 25° C (77° F)
- Thermistor Wire Size
- #24 AWG
- Time Initiation
- Temperature; Time
- Time Termination
- Pressure; Temperature; Time
- UL Cerfication File Number
- #E10694
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 288
- Voltage Selection Type
- Auto Voltage
- Warranty Period
- 1-Year limited
- Wire Size Max
- #8 AWG
- Wiring Option
- Finger safe terminals
