Intermatic CT2000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

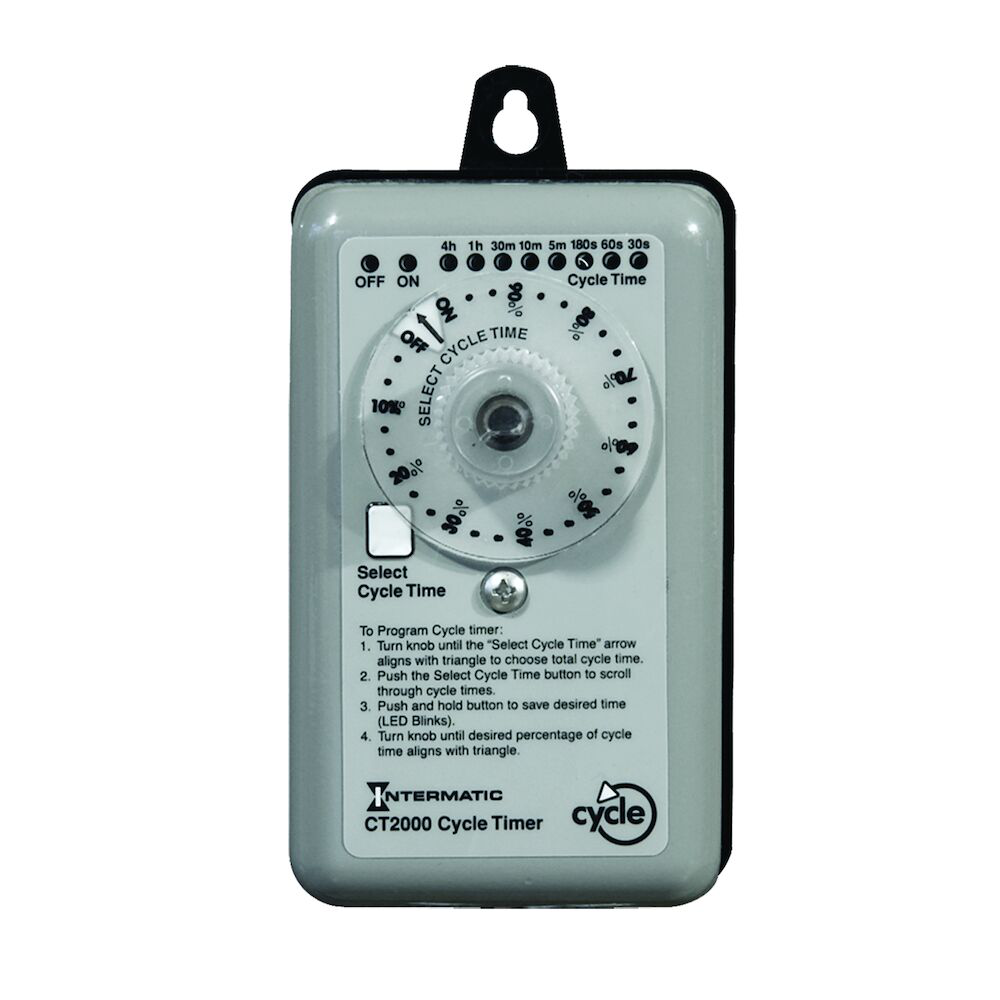

The CT2000 Percentage Cycle Time Switch is a field adjustable timer, offering true flexibility for repetitive cycle times via an upfront control button. The timer provides repetitive cycling for short-cycle applications. The timer enclosure includes two slotted mounting holes on 5" centers and a 1/2" knockout for conduit connection.Percentage Cycle Time Switch
Intermatic CT2000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Motor Load Ratings
- 1 HP, 120 VAC, 60 Hz; 2 HP, 240 VAC, 60 Hz
- Motor Load Ratings Ranges
- 1 HP, 120 VAC; 2 HP, 240 VAC, 60 Hz
- Pilot Duty Load Ratings
- 470 VA, 240 VAC, 60 Hz
- Resistive Load Ratings
- 20 A, 28 VDC
- Resistive Load Ratings Ranges
- 20 A, 28 VDC, 240 VAC, 60 Hz
Specifications
- Applications
- Agriculture Feeders; Greenhouse Misting Control
- Ballast Fluorescent
- 10 A, 277 VAC, 60 Hz
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Cycle Duration
- 30 sec; 1 min; 3 min; 5 min; 10 min: 30 min; 1-Hour; 4 hours
- Enclosure Type
- Outdoor type 3R metal
- General Purpose Load Ratings
- 20 A, 240 VAC, 60 Hz
- Lifecycle
- Production
- Market
- Commercial; Residential
- Operating Temperature Max
- 60°F
- 140°C
- Operating Temperature Min
- -10°F
- -14°C
- Packaging Applications
- Ventilating Fans; Fogging Equipment; Process Equipment; Poultry & Livestock Feeders; Misting Systems
- Product Depth
- 3.3125 in; 84.1 mm
- Product Height
- 6.625 in; 168.3 mm
- Product Width
- 3.5 in; 88.9 mm
- Solutions
- Machinery & Pumps; Energy Savings
- Switch Type
- SPST
- Tungsten Incandescent
- 5 A, 240 VAC, 60 Hz
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 432
- Warranty Period
- 12-Year limited
- Wiring Option
- Wire leads
