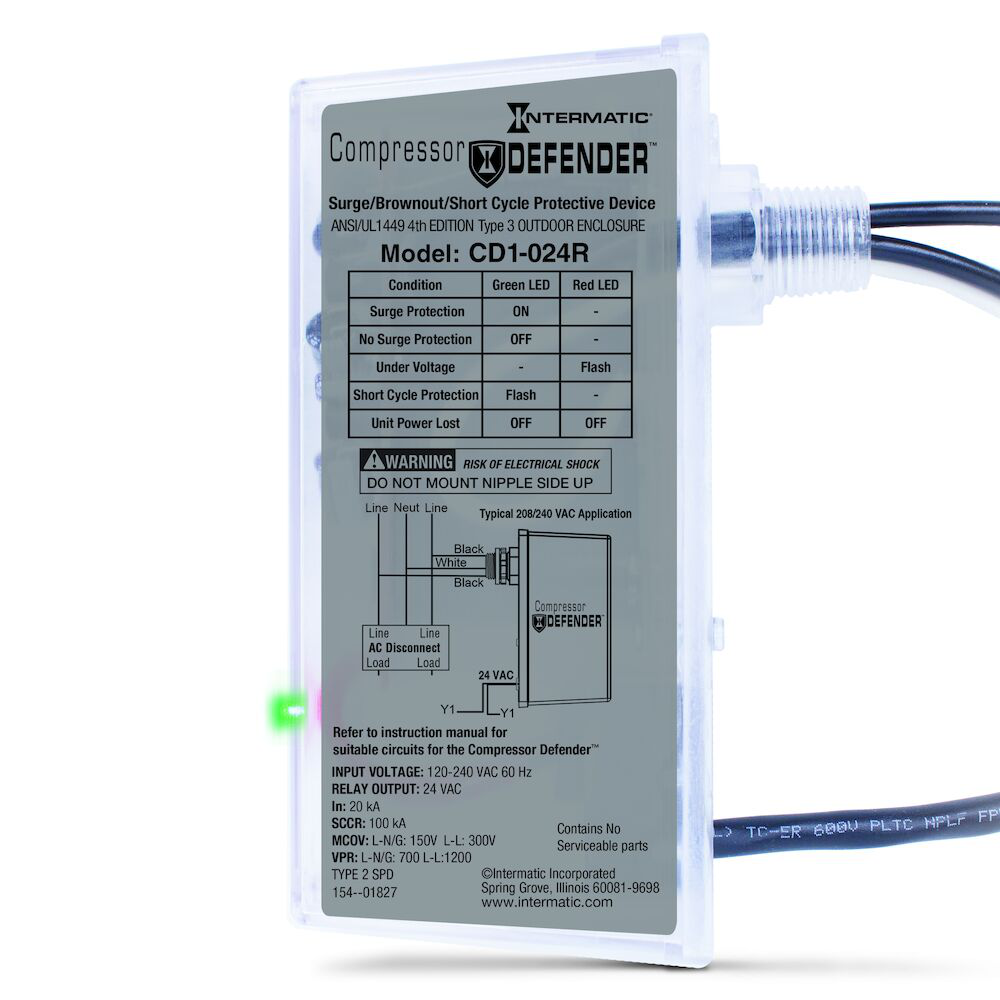

Intermatic CD1-024R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The COMPRESSOR DEFENDER® surge protector is the only all-in-one undervoltage and surge power protection device on the HVAC Market, providing protection for central A/C and heat pump condensing units and their associated motors, controls and components—both electronic and mechanical. It can be installed inside the condensing unit or externally on the outdoor A/C disconnect. Autosense voltage technology protects at any voltage from 120-240 VAC, making it an ideal solution for residential or light commercial installations. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are associated with standard MOV technology. The device is also designed with integrated 3-minute short cycle time delay protection.Surge Protective Device with Undervoltage Protection, 3-Mode, 120-240 VAC 1Ph, Type 2
Intermatic CD1-024R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Applications
- Distribution Panel; Service Entrance; HVAC Equipment Protection
- Connected Equipment Warranty Coverage
- $7, 500
- Connected Equipment Warranty Period
- 3-Year
- Control Output Current Rating
- 2 A @ 24 VAC, isolated NC contact
- Country of Origin
- Mexico
- Enclosure Type
- Outdoor type 3
- LED Short CycleI ndicator
- Green
- LED Surge Protection Indicator
- Green
- LED Undervoltage Indicator
- Red
- Lifecycle
- Production
- Market
- Residential
- Maximum Surge Current Rating Per Phase
- 50 kA
- Modes Of Protection
- 3 (L1-N, L2-N, L1-L2)
- Nominal Discharge Current
- 20 kA
- Operating Temperature Max
- 158°C
- 70°F
- Operating Temperature Min
- -40°F
- -40°C
- Other Certifications
- HVACR
- Packaging Applications
- 1- or 2-stage central air conditioners and heat pumps for residential and light commercial heating and cooling.; Pool and Spa Heating Systems
- Power Disruption Response Time
- 3 line cycles*
- Product Depth
- 4 in; mm
- Product Height
- 6 13/32 in; mm
- Product Width
- 1 19/32 in; mm
- Short Circuit Current Rating
- 100 kA
- Short Cycle Delay
- 3 min
- Solutions
- Surge Protection
- Surge Protection Technology
- TPMOV®
- Surge Protection Types
- 2
- Thermostat Relay
- Normally Closed Relay, 24 VAC
- UL Certification
- cULus
- Undervoltage Pickup 120
- 104 Vac
- Undervoltage Pickup 208
- 180 Vac
- Undervoltage Pickup 240
- 208 Vac
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 288
- Voltage Protection Rating LL
- 1200
- Voltage Protection Rating L N G
- 700
- Warranty Period
- 3-Year limited
- Wire Size Max
- #10 AWG, Tinned Copper
Voltage
- Maximum Continuous Operating Voltage LL
- 300
- Maximum Continuous Operating Voltage LNG
- 150
- Under Voltage Response Time Cycles
- 5 line cycles*
