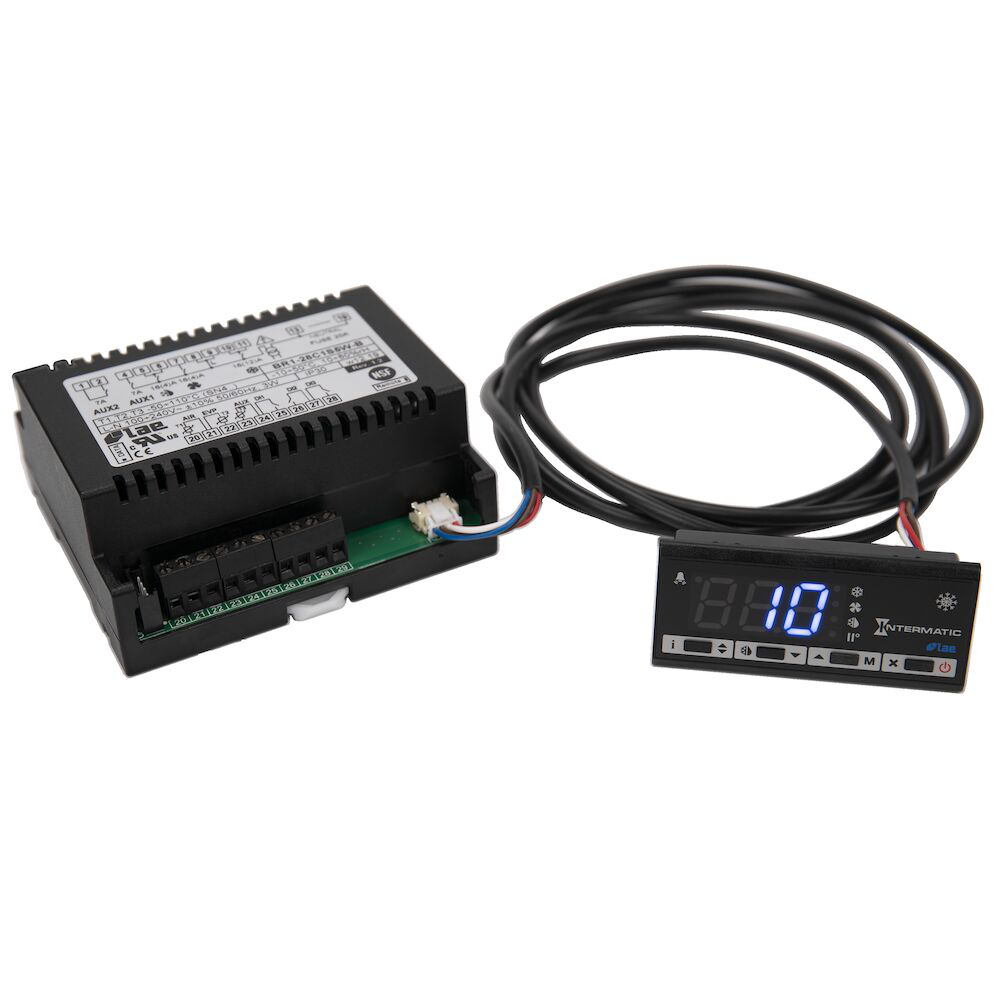

Intermatic BR1-28C1Q5WH-BI
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Split Controllers are designed to excel in more demanding applications and provide additional control options for more complex equipment. These controllers can be mounted to a wiring chase or with the refrigeration equipment, eliminating the need for long runs of control wiring. *Controller, cable and display must each be ordered separatelyRefrigeration Controller, 3 NTC/PTC Sensors, 1 Digital Input, 100-240 VAC, Screw Terminals, RS485, Propane Suitable
Intermatic BR1-28C1Q5WH-BI is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Application Compatibilities
- Commercial Refrigeration; Walk-in Cooler; Walk-in Freezer
- Applications
- Ice Refrigeration Machine; Reach-In Refrigeration Cooler
- Clock Display Types
- LED
- Country of Origin
- Italy
- Cut Out Height
- 1.14 in; 29 mm
- Cut Out Width
- 71 in; 71 mm
- Electrical Life
- 100, 000 operations at full load
- Enclosure Type
- IP55 Front
- Has Realtime Clock Face CVL
- Yes
- Input Voltage Ranges
- 100-240 VAC ±10%, 50/60 Hz
- LED Defrost Indicator
- Red
- Lifecycle
- Production
- Market
- Commercial
- Mechanism Type
- Electrical
- Minimum Cycle Time
- 1 min
- Mounting Options
- DIN
- Number Of Circuits Controlled
- 5
- Operating Humidity
- 0-80% RH, Non-condensing
- Operating Temperature Max
- 50°F
- 122°C
- Operating Temperature Min
- -10°F
- 14°C
- Other Certifications
- Title 24 LAE; NSF
- Packaging Applications
- Hospitals; Universities; Healthcare Facilities; Convenience Stores; Restaurants; Food Service Facilities; Food Processing Facilities; Food Storage Warehouses; Nursing Homes; Medium and Low-Temperature Commercial Refrigeration Systems; Freestanding upright cabinets and counters; Cold Stores; Plug-in Display Cases; Control Panels; Heated Cabinets
- Panel Opening Height
- 29 mm
- Panel Opening Heigh tIn
- 1.14 in
- Panel Opening Width
- 2.80 in
- 71 mm
- Product Depth
- 2.76 in; 70 mm
- Product Height
- 1.81 in; 46 mm
- Product Weight
- 0.57 lbs; 0.26 kg
- Product Weight Kg
- 0.26
- Product Weight Lbs
- 0.57
- Product Width
- 4.13 in; 105 mm
- Relay Type AUX1
- SPST
- Relay Type AUX2
- SPST
- Relay Type Compressor
- SPST
- Relay Type Defrost
- SPST
- Relay Type Fan
- SPST
- Resistive Load Ratings Ranges AUX 1
- 7 (2) A @ 240 VAC
- Resistive Load Ratings Ranges Compressor
- 16 (12) A @ 240 VAC
- Resistive Load Ratings Ranges Defrost
- 16 (4) A @ 240 VAC
- Resistive Load Ratings Ranges Fan
- 16 (4) A @ 240 VAC
- RoHS Certification
- Yes
- Solutions
- Refrigeration
- UL Cerfication File Number
- #SA32385
- UL Certification
- UL60730-1
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 9999
- Voltage Selection Type
- Auto Voltage
- Warranty Period
- 5-Year limited
- Wire Size Max
- #10 AWG
- Wiring Option
- Screw (female connector)
Temperature
- Storage Temperature Max C
- 50
- Storage Temperature Max F
- 122
- Storage Temperature Min C
- -10
- Storage Temperature Min F
- 14
