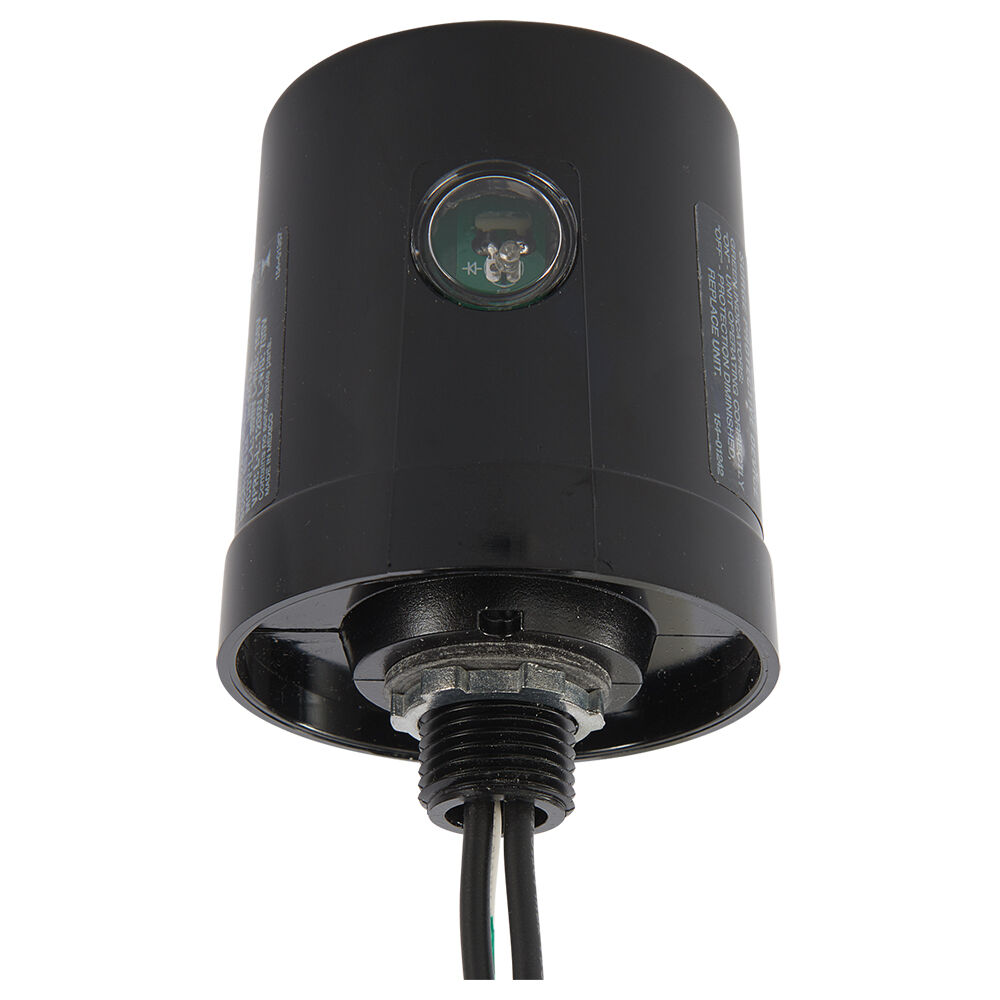

Intermatic AG48013
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.Surge Protective Device, 3-Mode, 277/480 VAC 1Ph, Type 1 or Type 2, Outdoor
Intermatic AG48013 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Applications
- Distribution Panel; Service Entrance
- Country of Origin
- Mexico
- CSA Certification
- cCSAus; cCSAus SPD Type 1; cCSAus SPD Type 2
- Enclosure Type
- Indoor/outdoor type 4X
- LED Surge Protection Indicator
- Green
- Lifecycle
- Production
- Market
- Commercial; Industrial
- Maximum Surge Current Rating Per Phase
- 50 kA
- Modes Of Protection
- 3 (L1-N, L2-N, L1-L2)
- Nominal Discharge Current
- 20 kA
- Number Of Wire Leads
- 3
- Operating Temperature Max
- 185°C
- 85°F
- Operating Temperature Min
- -31°C
- -35°F
- Packaging Applications
- Light Commercial; Outdoor Applications; 3-Phase Rooftop HVAC Units
- Product Diameter
- 76.2 mm
- 3 in; 76.2 mm
- Product Height
- 4 3/16 in; 106.4 mm
- Short Circuit Current Rating
- 50 kA
- Solutions
- Surge Protection
- Surge Protection Technology
- TPMOV®
- Surge Protection Types
- 1; 2
- UL Certification
- UL
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 480
- Voltage
- 277/480 VAC Single-Phase
- Voltage Protection Rating LG
- 1200
- Voltage Protection Rating LL
- 2000
- Voltage Protection Rating LN
- 1200
- Warranty Period
- 1-Year limited
- Wire Lead Length
- 18 in; 457.2 mm
- Wire Size Max
- #10 AWG (Black, White); #6 AWG (Green)
- Wiring Option
- Wire leads
Voltage
- Maximum Continuous Operating Voltage L1 L2
- 640
- Maximum Continuous Operating Voltage LG
- 320
- Maximum Continuous Operating Voltage LL
- 640
- Maximum Continuous Operating Voltage LN
- 320
