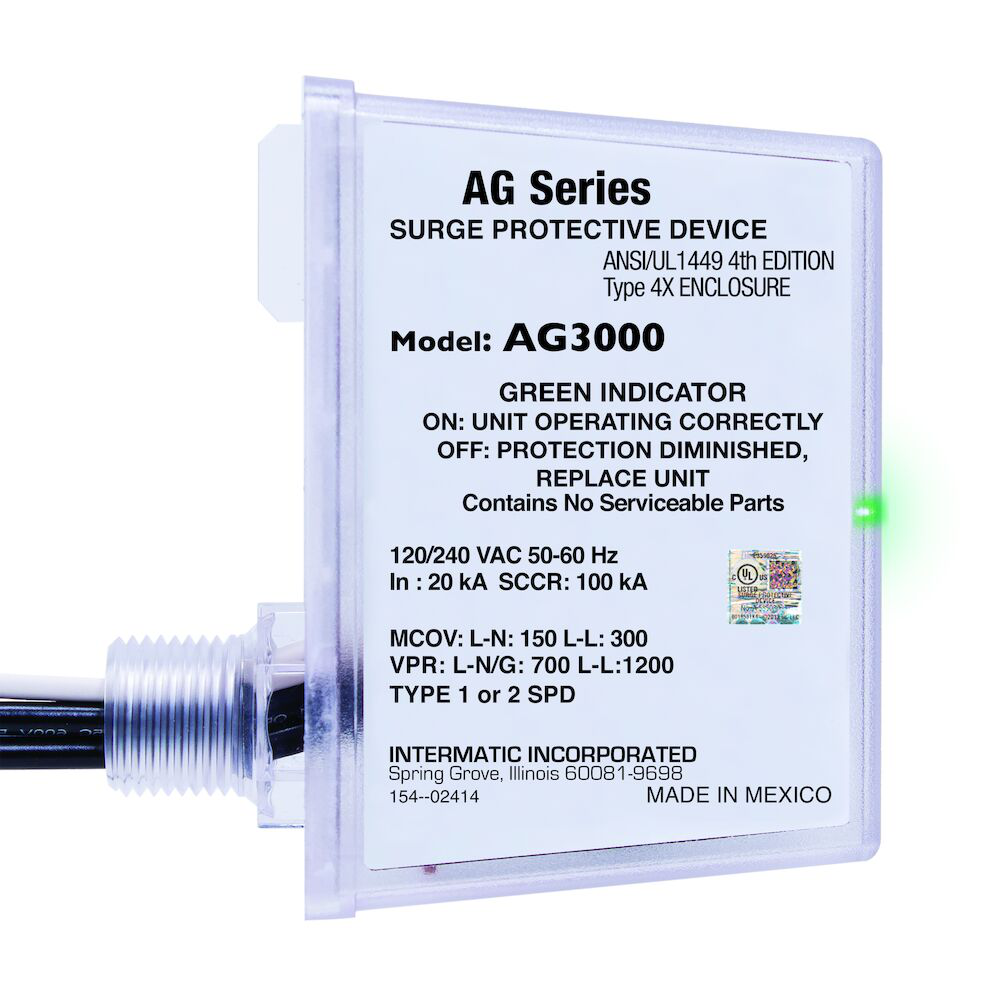

Intermatic AG3000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 4th Edition.Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor, Connected Equipment Warranty 3yr $7,500
Intermatic AG3000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Applications
- Distribution Panel; Service Entrance; HVAC Equipment Protection
- Connected Equipment Warranty Coverage
- 7500
- Connected Equipment Warranty Period
- 3-Year limited
- Country of Origin
- Mexico
- Enclosure Type
- Indoor/outdoor type 4X
- LED Surge Protection Indicator
- Green
- Lifecycle
- Production
- Market
- Residential
- Maximum Surge Current Rating Per Phase
- 50 kA
- Modes Of Protection
- 3 (L1-N, L2-N, L1-L2)
- Nominal Discharge Current
- 20 kA
- Number Of Wire Leads
- 3
- Operating Temperature Max
- 70°F
- 158°C
- Operating Temperature Min
- -40°C
- -40°F
- Other Certifications
- HVACR
- Packaging Applications
- Boilers; Hydronic Heating; Heat Pumps; Furnaces; Central Air Conditioning; Air Handlers; Mini-splits; Instantaneous Water Heaters
- Product Depth
- 4 3/16 in; 106.4 mm
- Product Height
- 3 7/8 in; 98 mm
- Product Width
- 1 5/8 in; 41 mm
- Short Circuit Current Rating
- 100 kA
- Solutions
- Surge Protection
- Surge Protection Technology
- TPMOV®
- Surge Protection Types
- 1; 2
- UL Certification
- cULus
- Undervoltage Pickup 120
- 104 Vac
- Undervoltage Pickup 208
- 180 Vac
- Undervoltage Pickup 240
- 208 Vac
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 1120
- Voltage
- 120/240 VAC Single-Phase
- Voltage Protection Rating L1 NG
- 700
- Voltage Protection Rating LL
- 1200
- Warranty Period
- 3-Year limited
- Wire Lead Length
- 18 in; 457.2 mm
- Wire Size Max
- #10 AWG, Tinned Copper
- Wiring Option
- Wire leads
Voltage
- Maximum Continuous Operating Voltage L1 NG
- 150
- Maximum Continuous Operating Voltage LG
- 150
- Maximum Continuous Operating Voltage LL
- 300
