Ingersoll Rand 2025MAX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

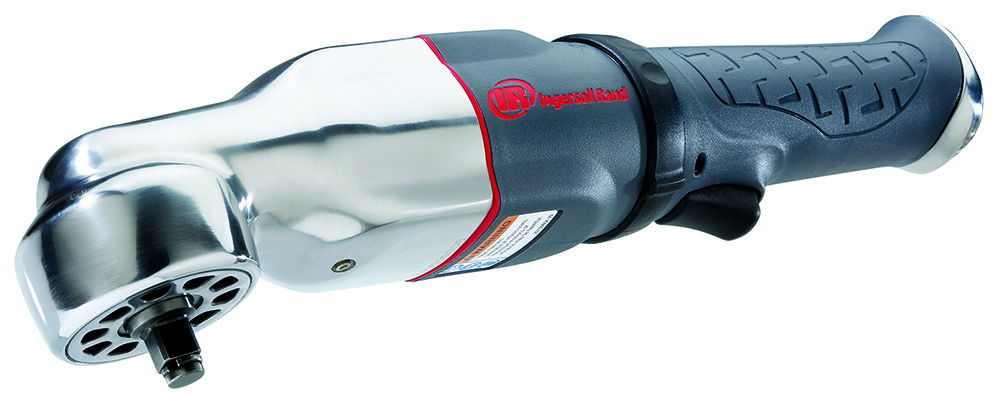

Ingersoll Rand 2025MAX is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuation/Throttle Type/Switch Type
- Feather-touch Trigger
- Air Consumption @ Load (cfm)
- 19
- Air Consumption @ Load (l/min)
- 538
- Air Inlet NPT (in)
- 1/4
- Air Pressure (psi)
- 90
- Anvil Length
- Standard
- Average Air Consumption (cfm)
- 3.5
- Average Air Consumption (l/min)
- 99
- Blows per Min
- 2100
- Configuration/Handle Type
- Right Angle
- Country of Origin
- United States
- Drive Size (in)
- 1/2
- Drive Type
- Square
- Duty Rating
- Maintenance Duty
- End Plates
- Aluminum with Hard-coating
- Exhaust Location
- Bottom
- Forward/Fastening Torque (ft-lb)
- 150
- Forward/Fastening Torque (nm)
- 203
- Free Speed (rpm)
- 9000
- Free Speed Sound Pressure/Power Db(A)
- 94.1 / 105.1
- Hammer Case
- Aluminum
- Handle Material
- Composite
- Height
- 3.1 in
- Impacting Sound Pressure/Power Db(A)
- 96.6 / 107.6
- Impact Mechanism
- Single Hammer
- Length
- 13.1 in
- Max Bolt Diameter (in)
- 7/16
- Max Pressure (bar)
- 6.2
- Max Reverse Torque (ft-lb)
- 180
- Max Reverse Torque (nm)
- 244
- Min Hose Size (in)
- 3/8
- Motor
- Reverse Bias
- Number of Power Settings
- 2
- Power Source
- Air Powered
- Power to Weight Ratio (Nut-busting Torque/Weight) Ft.-Lb./Lb.
- 52.9
- Prime Location
- Southern Pines, NC
- Product Height (mm)
- 79
- Retainer Type
- Friction Ring
- Side to Center Distance (in)
- 1.1
- Standards/Certifications
- Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
- Tool Type
- Full-size
- Vanes
- 7
- Vibration Level (m/s2)
- 17.4
- Warranty
- 1-year
- Weight
- 3.4 lb
- Width
- 2.2 in
Williams Automation sells Ingersoll Rand parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
