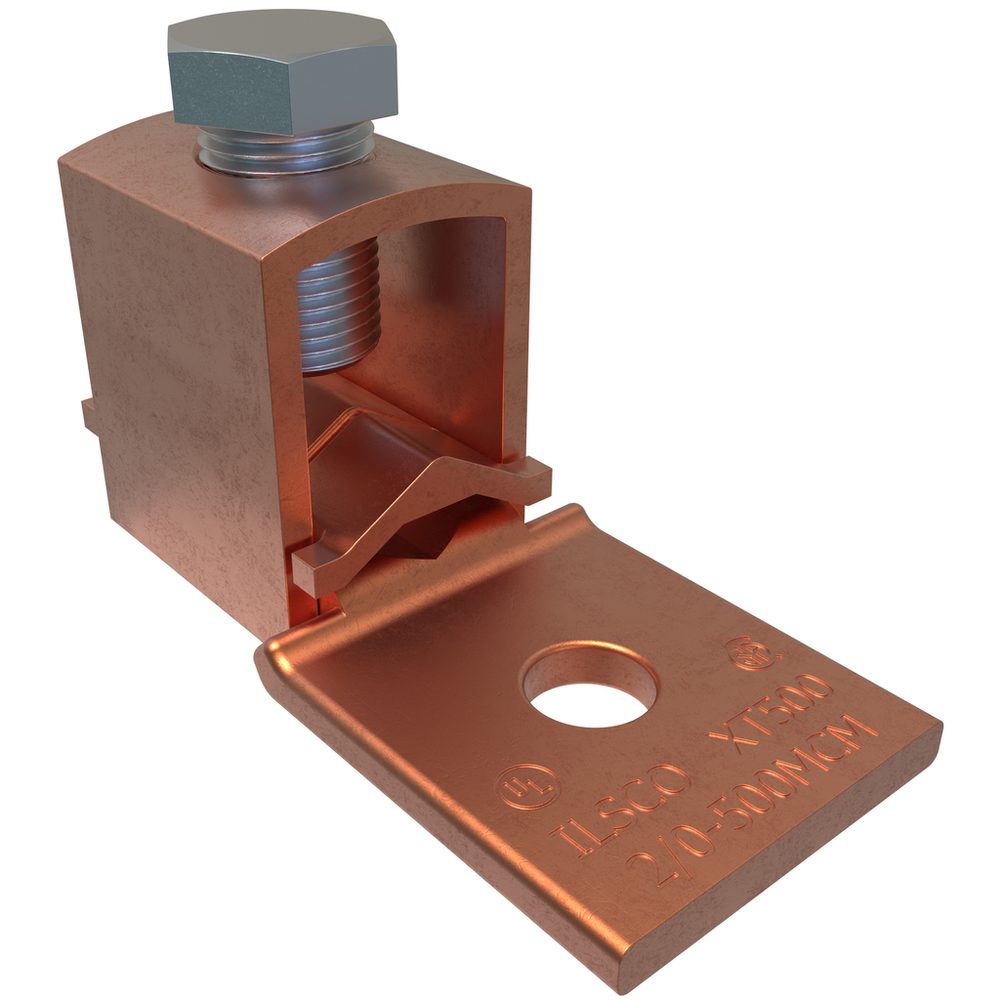

ILSCO XT-500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Copper Mechanical Lug, Conductor Range 500-2/0, 1 Port, 1 Hole, 3/8 Bolt Size, UL, CSA
ILSCO XT-500 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- No
- Mounting Hole Type
- Thru
- Number of Conductors
- 1
- Number of Mounting Holes
- 1
- Number of Poles
- 1
- Number of Ports / Wireways
- 1
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 3/4
Color
- Color
- Copper
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil - 2/0 Str
Dimensions
- Dimension G (IN)
- 0.875
- Dimension G (mm)
- 22.225
- Drive Size Main
- 3/4
- Drive Type Main
- External Hex
- Height BX (IN)
- 2.25
- Height (mm)
- 47.2186
- Mounting Bolt/Stud Size (mm)
- 965.2
- Mounting Hole Diameter (IN)
- 0.438
- Mounting Hole Diameter (mm)
- 11.1252
- Tang Length (IN)
- 1.623
- Tang Length (mm)
- 41.2242
- Tang Offset (IN)
- 0.217
- Tang Offset (mm)
- 5.5118
- Tang Thickness (IN)
- 0.188
- Tang Thickness (mm)
- 4.7752
- Tang Width (IN)
- 1.5
- Tang Width (mm)
- 38.1
- Weight BX (LB)
- 4.9
- Width BX (IN)
- 5
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 6
- Direct Burial
- No
- Dual Rated
- No
- NEMA Code
- S-588-3
- UPC Code
- 78366996037
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
- Wire Binding Hardware Material
- Steel
Specifications
- Height
- 1.859 in | 47.2186 mm
- Length
- 3.326 in
- Weight
- 0.666 lbs
- Width
- 1.5 in
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ROHS Indicator
- IND
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
