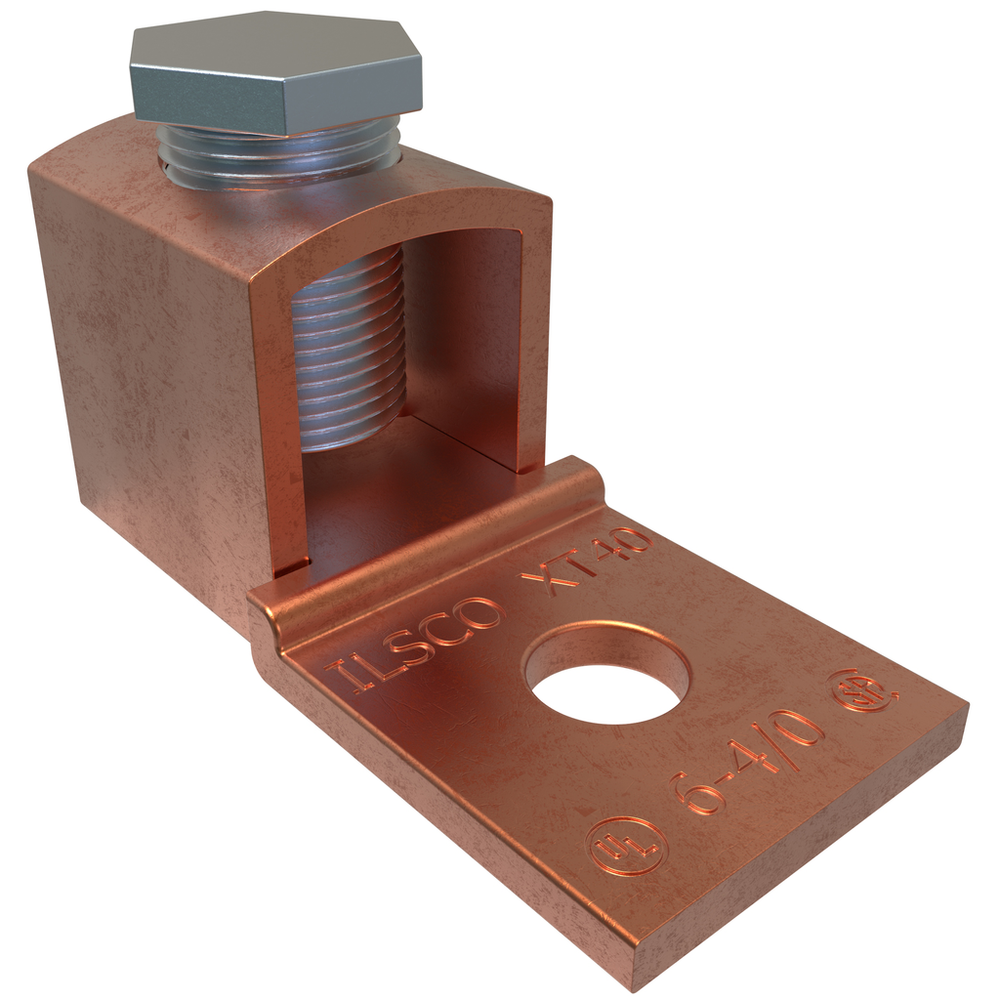

ILSCO XT-40

Additional Class Attributes

• Connection
  • Mechanical
• Contains DE-OX®
  • No
• Mounting Hole Type
  • Thru
• Number of Conductors
  • 1
• Number of Mounting Holes
  • 1
• Number of Poles
  • 1
• Number of Ports / Wireways
  • 1

Additional Technical Specifications

• Conductor Type
  • Stranded

Bolt and Screw Sizes

• Mounting Bolt/Stud Size
  • 5/16
• Number of Wire Binding Screws per Port
  • 1
• Wire Binding Screw Size
  • 5/8

Color

• Color
  • Copper

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line)
  • 4/0 Str - 6 Str

Dimensions

• Dimension G (IN)
  • 0.563
• Dimension G (mm)
  • 14.3002
• Drive Size Main
  • 5/8
• Drive Type Main
  • External Hex
• Height BX (IN)
  • 2
• Mounting Hole Diameter (IN)
  • 0.344
• Tang Length (IN)
  • 1.063
• Tang Length (mm)
  • 27.0002
• Tang Offset (IN)
  • 0.094
• Tang Offset (mm)
  • 2.3876
• Tang Thickness (IN)
  • 0.125
• Tang Thickness (mm)
  • 3.175
• Tang Width (IN)
  • 1
• Tang Width (mm)
  • 25.4
• Weight BX (LB)
  • 6.337
• Width BX (IN)
  • 6.1875

Environment and Temperature

• Temperature Rating
  • 90°C

General

• Bag Quantity
  • 1
• Carton Quantity Description
  • STD PACK QTY 25
• Direct Burial
  • No
• Dual Rated
  • No
• NEMA Code
  • S-588-3
• UPC Code
  • 78366995923

Material and Finish

• Conductor Material
  • Copper
• Material
  • Copper
• Wire Binding Hardware Finish
  • Zinc Clear Trivalent Chromate
• Wire Binding Hardware Material
  • Steel

Specifications

• Height
  • 1.186 in
• Length
  • 2.188 in
• Weight
  • 0.247 lbs
• Width
  • 1 in

Testing Standards

• CSA File Number
  • LR-29601
• CSA Standard
  • C22.2 No. 65-03
• Prop65 Compliance
  • This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator
  • IND
• UL Control Number
  • 453G
• UL / CULUS Specification
  • UL 486A/B Listed
• UL File Number
  • E6207

Voltage

• Voltage Rating
  • 35 kV
