ILSCO XT-4
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

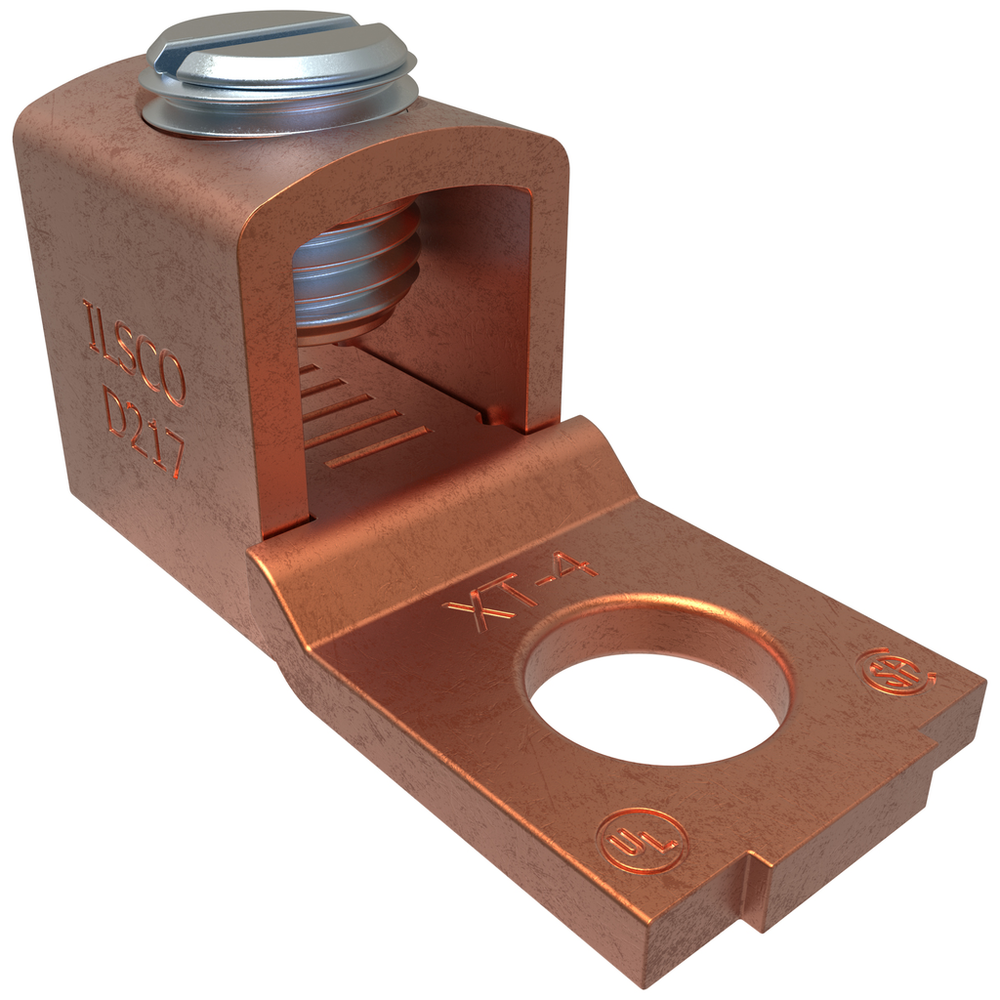

Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
ILSCO XT-4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- No
- Mounting Hole Type
- Thru
- Number of Conductors
- 4, 2, 1
- Number of Mounting Holes
- 1
- Number of Poles
- 1
- Number of Ports / Wireways
- 1
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 5/16
- Wire Binding Torque
- 8 AWG = 40, 4 - 6 AWG = 45, 2/0 - 3 AWG = 50, 10 - 14 AWG = 35
Color
- Color
- Copper
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Wire Combinations
- (2) 12 Sol/Str, (2) 10 Sol/Str, (2) 14 Sol/Str, (4) 16 Sol/Str, (2) 8 Str
Dimensions
- Dimension G (IN)
- 0.25
- Dimension G (mm)
- 6.35
- Drive Type Main
- Slotted
- Height BX (IN)
- 2.25
- Height (mm)
- 14.605
- Mounting Hole Diameter (IN)
- 0.265
- Mounting Hole Diameter (mm)
- 6.731
- Tang Length (IN)
- 0.51
- Tang Length (mm)
- 12.954
- Tang Offset (IN)
- 0.072
- Tang Offset (mm)
- 1.8288
- Tang Thickness (IN)
- 0.082
- Tang Thickness (mm)
- 2.0828
- Tang Width (IN)
- 0.5
- Tang Width (mm)
- 12.7
- Weight BX (LB)
- 4.35
- Width BX (IN)
- 5
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 100
- Direct Burial
- No
- Dual Rated
- No
- NEMA Code
- S-588-3
- UPC Code
- 78366995755
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
- Wire Binding Hardware Material
- Steel
Specifications
- Height
- 0.575 in | 14.605 mm
- Length
- 1.12 in
- Weight
- 0.034 lbs
- Width
- 0.5 in
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ROHS Indicator
- IND
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
