ILSCO ULT-6-Z
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

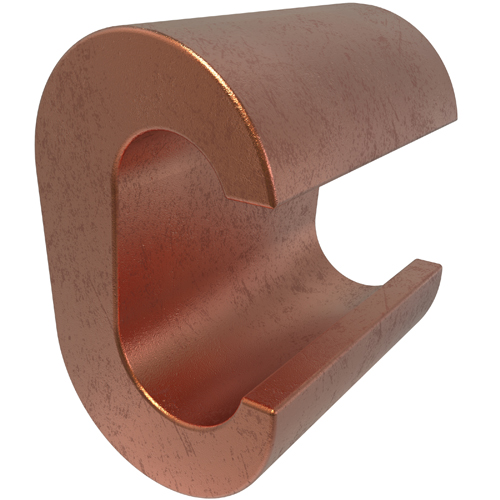

Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 4-8 Sol, UL, CSA
ILSCO ULT-6-Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Barrel Marking
- Hard
- ILSCOs Die Index Number
- ND-C
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Color
- Color
- Copper
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 2 Sol
- Conductor Range CU Solid (Secondary, tap, load)
- 4 Sol - 8 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 4 Str - 8 Str
Dimensions
- Height BX (IN)
- 2
- Weight BX (LB)
- 8.547
- Width BX (IN)
- 6.1875
- Width (mm)
- 15.5956
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 100
- Direct Burial
- Yes
- Dual Rated
- No
- NEMA Code
- S-588-1
- UPC Code
- 78366993079
Material and Finish
- Conductor Material
- Copper
- Connector Finish
- Bare
- Material
- Copper
Specifications
- Height
- 0.83 in
- Length
- 0.99 in
- Weight
- 0.084 lbs
- Width
- 0.614 in | 15.5956 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ROHS Indicator
- IND
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
