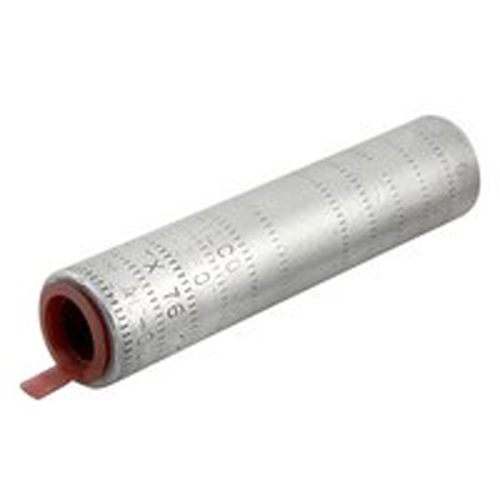

ILSCO UCS-500-Z
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Utility Compression Sleeve, Dual Rated, Conductor Size 500
ILSCO UCS-500-Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Barrel Marking
- Hard
- Barrel Type
- Long
- Connection
- Compression
- Contains DE-OX®
- Yes
- Flared End
- No
- ILSCOs Die Index Number
- 14
- Installing Dies
- 13A, 655, 299, 705, 1-1/8, 96
- Sight Window
- No
Additional Technical Specifications
- Conductor Type
- Stranded
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 500 kcmil
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil
Dimensions
- Height BX (IN)
- 2.75
- Height (mm)
- 29.3624
- Inside Diameter (IN)
- 0.836
- Inside Diameter (mm)
- 21.2344
- Length (mm)
- 134.62
- Outside Diameter (IN)
- 1.156
- Weight BX (LB)
- 1.1355
- Width BX (IN)
- 5
- Width (mm)
- 29.3624
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 3
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-1
- UPC Code
- 78366992978
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Wax
- Material
- Aluminum
Specifications
- Height
- 1.156 in | 29.3624 mm
- Length
- 5.3 in | 134.62 mm
- Weight
- 0.258767267031072 lbs
- Width
- 1.156 in | 29.3624 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
