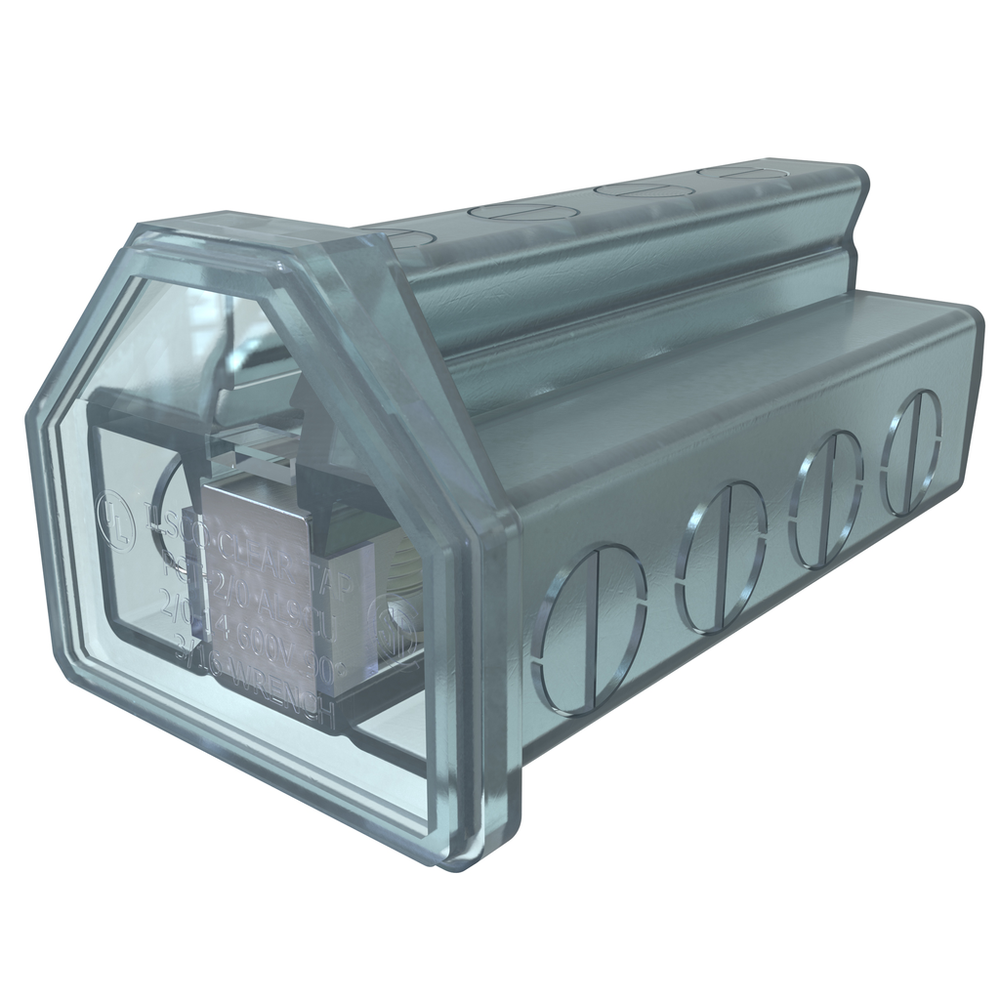

ILSCO PCT-4-2/0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 2/0-14, 4 Ports, Tin Plated, UL, CSA
ILSCO PCT-4-2/0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Number of Conductors
- 4
- Number of Poles
- 1
- Number of Ports / Wireways
- 4
- Number of Usable Ports
- 4
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
- Connector Amperage Rating CU (Derated where applicable)
- 195 Amps
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 7/16
- Wire Binding Torque
- 120
Color
- Color
- Clear
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 2/0 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str - 14 Str
Dimensions
- Drive Size Main
- 3/16
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 3.625
- Height (mm)
- 48.7426
- Length (mm)
- 104.521
- Max Insulation OD (IN)
- 0.615
- Max Insulation OD (mm)
- 15.621
- Weight BX (LB)
- 2.6924
- Width BX (IN)
- 6.375
- Width (mm)
- 57.2008
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Flammability Rating
- Insulation rated per UL 94
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 6
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366970042
Material and Finish
- Conductor Material
- Copper, Aluminum
- Connector Finish
- Tin
- Insulation
- Plastisol
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 1.919 in | 48.7426 mm
- Length
- 4.115 in | 104.521 mm
- Weight
- 0.406 lbs
- Width
- 2.252 in | 57.2008 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
