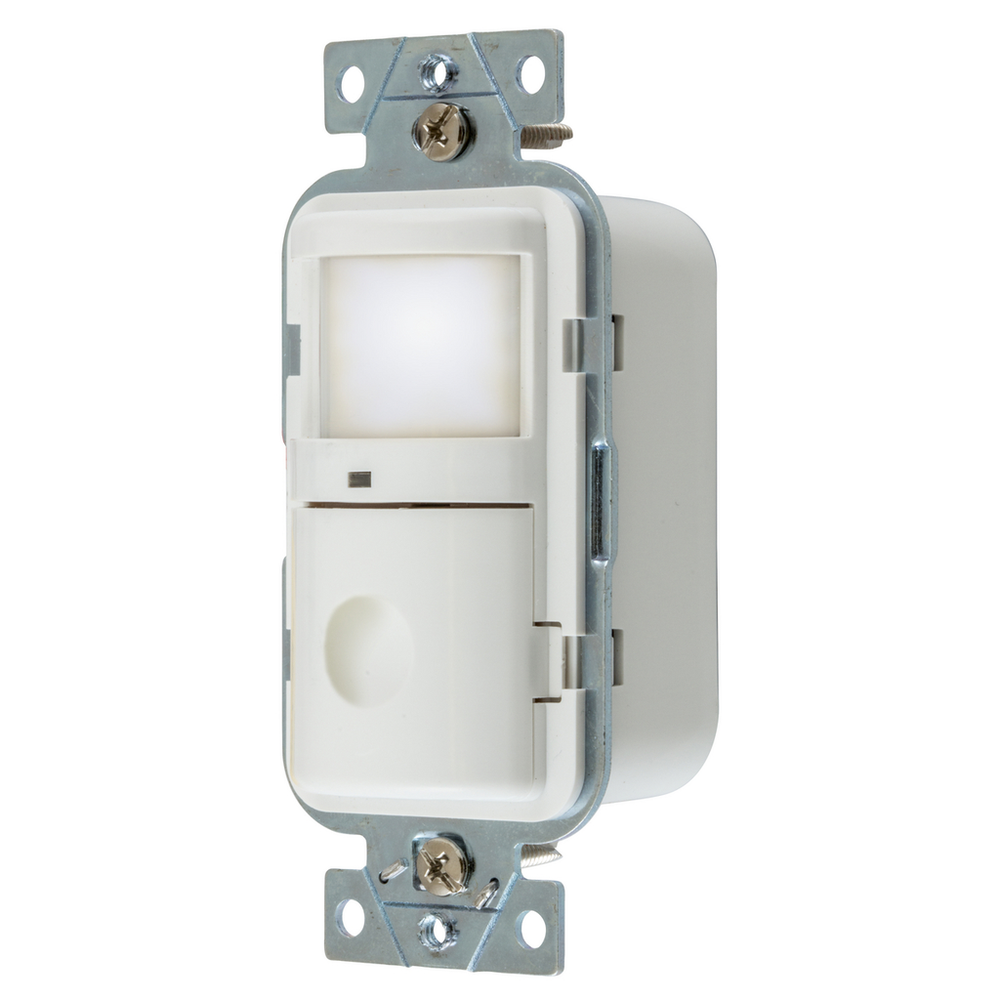

Hubbell WS2000NW
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Hubbell Wiring Device-Kellems WS2000NW is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Application
- Compatible with most LED and CFL
- Base Unit of Measure
- EA
- BOX SIZE
- 3.600x3.000x11.800 (in)
- Carton - Gross Weight per Pack
- 3.850 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585256313
- Carton - Total Units
- 10 EA
- Class Code
- A48
- Color
- White
- Country of Origin
- TW
- Coverage
- 1200 ft²
- Description - Invoice
- OCC/VAC SENSOR,PIR,120/277V,NIGHTL,WH
- Dimensions
- 4.15 in x 1.82 in x 1.62 in
- Each - Pack Description
- Each
- Each - Width
- 2.300 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536507000
- Height
- 1.62 in
- Humidity
- 20% to 90% non-condensing relative humidity
- Image Actual Or Representative
- A
- Indicator(s) Type
- PIR= Red LED
- Industry Standard(s)
- cULus Listed To UL773A
- Length
- 4.15 in
- Lowest Level UOM
- Each
- Material
- ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
- Mounting Height
- 3.5-4.5 ft
- MSDS Flag
- No
- Operating Temperature
- 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
- Performance
- Controls - Ambient Light - Photocell, 10 to 500 foot candles;Controls - Service Switch - OFF (service), Vacancy (manual-ON), Occupancy (auto-ON);Controls - Time Delay - Manual 20 seconds to 30 minutes;Electrical - Load Capacity - Incandescent - 0 to 1000 watts 120V, Ballast - 0 to 1000 watts 277V, Horsepower rating 1/6;Environmental - Operating Temperature - 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour;Environmental - Storage - -40°F to 150°F (-40°C to 65°C), 20% to 90% non condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED
- Photocell
- Yes
- Series
- Passive Infrared
- Size
- 4.15 in x 1.82 in x 1.62 in
- Standard
- cULus Listed To UL773A
- Storage Temperature Range
- -40°F to 150°F (-40°C to 65°C)
- Sub Class Code
- A48A450
- Type
- Manual/Auto
- Voltage Rating
- 120/277 VAC
- Voltage Rating Description
- 120/277V AC
- Width
- 2.300 in
Williams Automation sells Hubbell parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
