Hubbell HBL2813SW
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

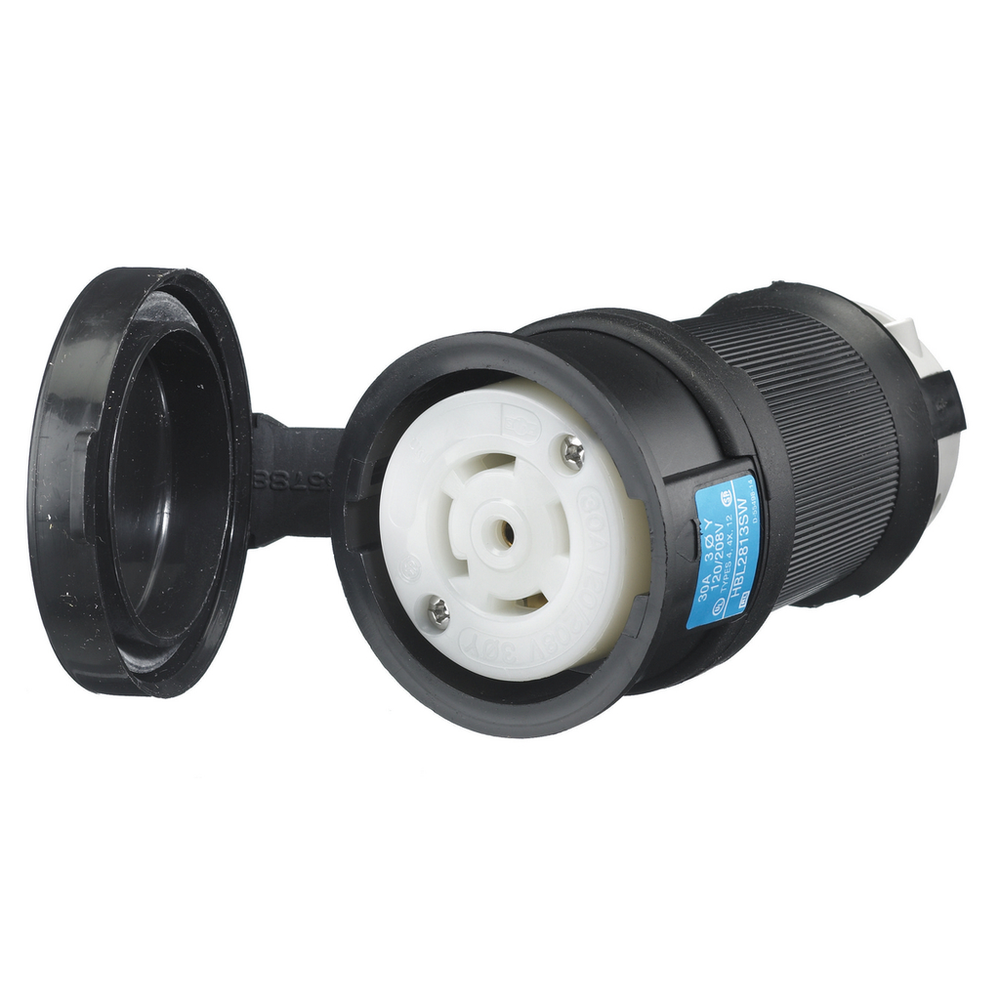

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 30A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, NEMA L21-30 R, Screw Terminal, Black PBT housing, White PBT clamps.Locking Devices, Twist-Lock®, Watertight Safety Shroud, Female Connector Body, 30A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, L21-30 R, ScrewTerminal, Black and White
Hubbell Wiring Device-Kellems HBL2813SW is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 5.435x19.125x8.205 (in)
- Cable Range
- 0.350 - 1.150 in
- Carton - Gross Weight per Pack
- 7.450 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585232102
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- Black, White
- Connectivity
- Pressure Terminal Screws
- Cord Diameter
- 0.350-1.150 in
- Cord Range
- 0.350"-1.150" (9-29)
- Country of Origin
- PR
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- LKG WT S/SHRD CONN,30A120/208V,L21-30R
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.75 in x 2.75 in x 4.40 in
- Display Size
- Standard
- Each - Pack Description
- Each
- Each - Width
- 3.668 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 4.40 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Insulation
- Insulated Body
- Length
- 2.75 in
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- L21-30R
- NEMA Rating
- L21-30R
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number Of Wires
- 5-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- 3 Phase WYE
- Size
- 2.75 in x 2.75 in x 4.40 in
- Special Features
- Shrouded Watertight Construction
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Sub Class Code
- A08A130
- Type
- Connector Body
- Voltage Rating
- 3 Phase WYE 120/208 VAC
- Voltage Rating Description
- 3 Phase WYE 120/208 VAC
- Weight
- 0.65 lb.
- Width
- 3.668 in
- Wire Size
- #16 AWG to #8 AWG
