Hubbell HBL2803
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

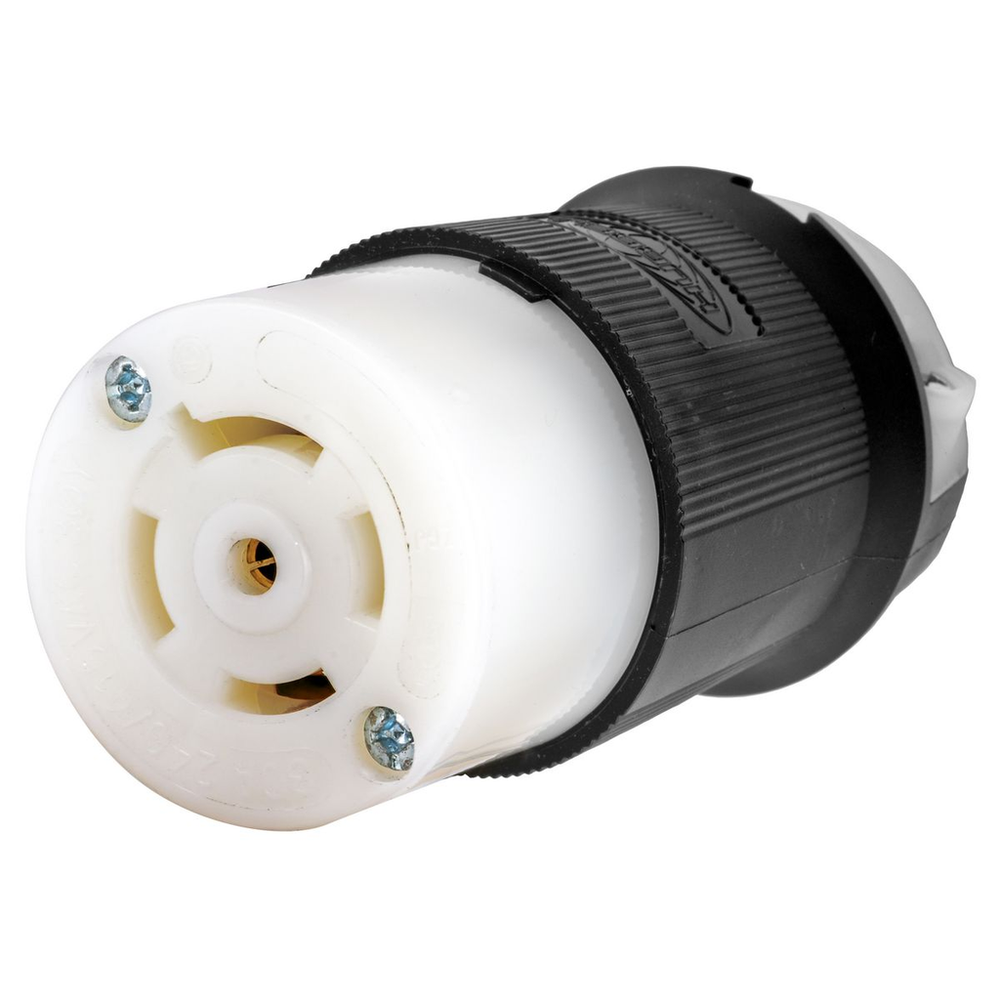

Hubbell Wiring Device-Kellems HBL2803 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 7.900x12.700x8.900 (in)
- Carton - Gross Weight per Pack
- 13.900 lb.
- Carton - Number of Sub Packs
- 30
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585580333
- Carton - Total Units
- 30 EA
- Class Code
- A08
- Country of Origin
- PR
- Description - Invoice
- LKG CONN, 30A 240/415 3PH, L26-30R, B/W
- Dimensions
- 2.21 in x 2.21 in x 3.86 in
- Each - Width
- 2.500 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 3.86 in
- Image Actual Or Representative
- A
- Length
- 2.21 in
- MSDS Flag
- No
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number Of Wires
- 5-Wire
- Performance
- Electrical-Current Interrupting - Certified at full rated current;Electrical - Dielectric Voltage -2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact);Environmental - Moisture Resistance - IP20 Suitability
- Size
- 2.21 in x 2.21 in x 3.86 in
- Sub Class Code
- A08A110
- Width
- 2.500 in
- Wire Size
- #16 AWG to #8 AWG
Williams Automation sells Hubbell parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
