Description

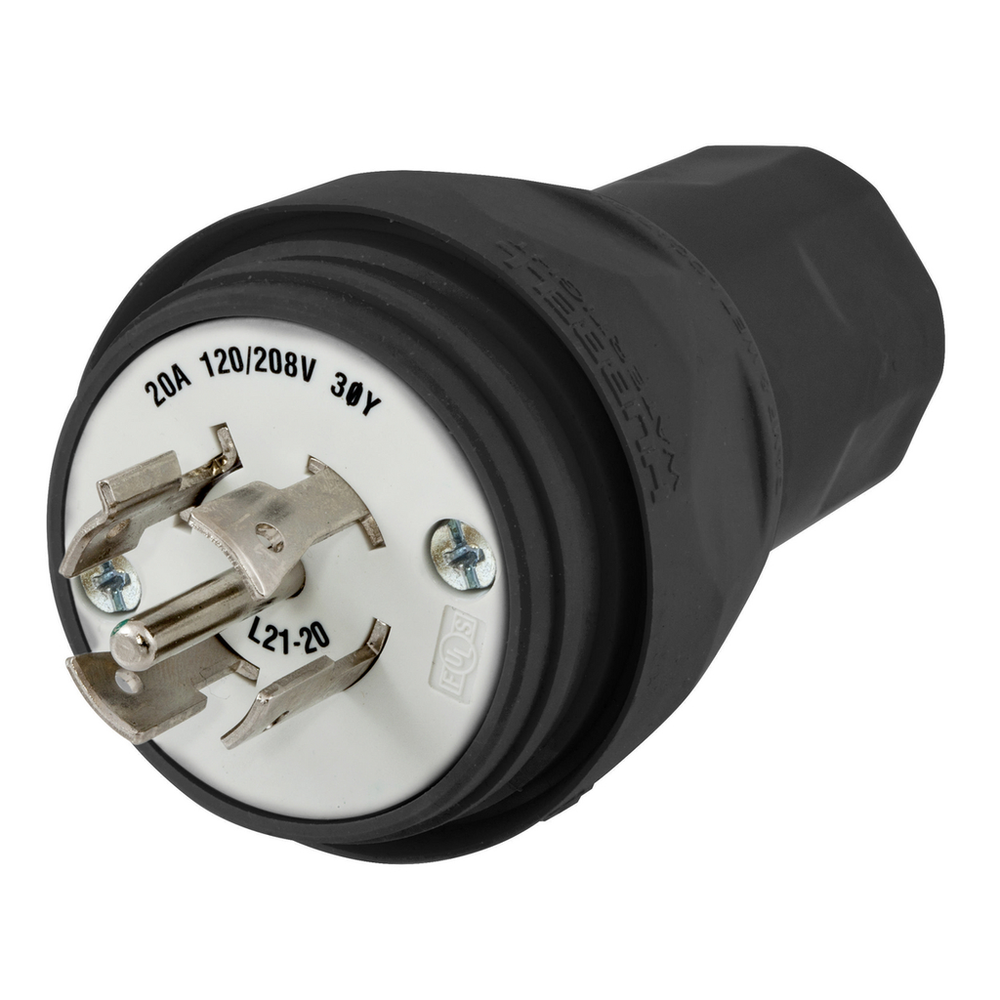

Hubbell Wiring Device-Kellems HBL26W81BK is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 20 A
- Base Unit of Measure
- EA
- BOX SIZE
- 7.745x12.745x8.995 (in)
- Carton - Gross Weight per Pack
- 6.450 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585131672
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- Black
- Cord Diameter
- 0.325-0.875 in
- Country of Origin
- PR
- Current / Amperage Rating
- 20 A
- Description - Invoice
- PLUG,W/TIGHT,3PY 20A 120/208V L21-20P,BK
- Dimensions
- 2.51 in x 2.51 in x 3.96 in
- Each - Width
- 9.000 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 3.96 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Length
- 2.51 in
- MSDS Flag
- No
- Nema Rating
- L21-20P
- NEMA Rating
- L21-20P
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number of Wires
- 5-Wire
- Number Of Wires
- 5-Wire
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance- All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation- 0.375"-0.875" (9.5-22.2)
- Size
- 2.51 in x 2.51 in x 3.96 in
- Standard
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Sub Class Code
- A08A116
- Type
- Plugs
- Voltage Rating
- 3-Phase Y 120/208 VAC
- Voltage Rating Description
- 3-Phase Y 120/208 VAC
- Width
- 9.000 in
- Wire Size
- Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
