Hubbell HBL26410
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

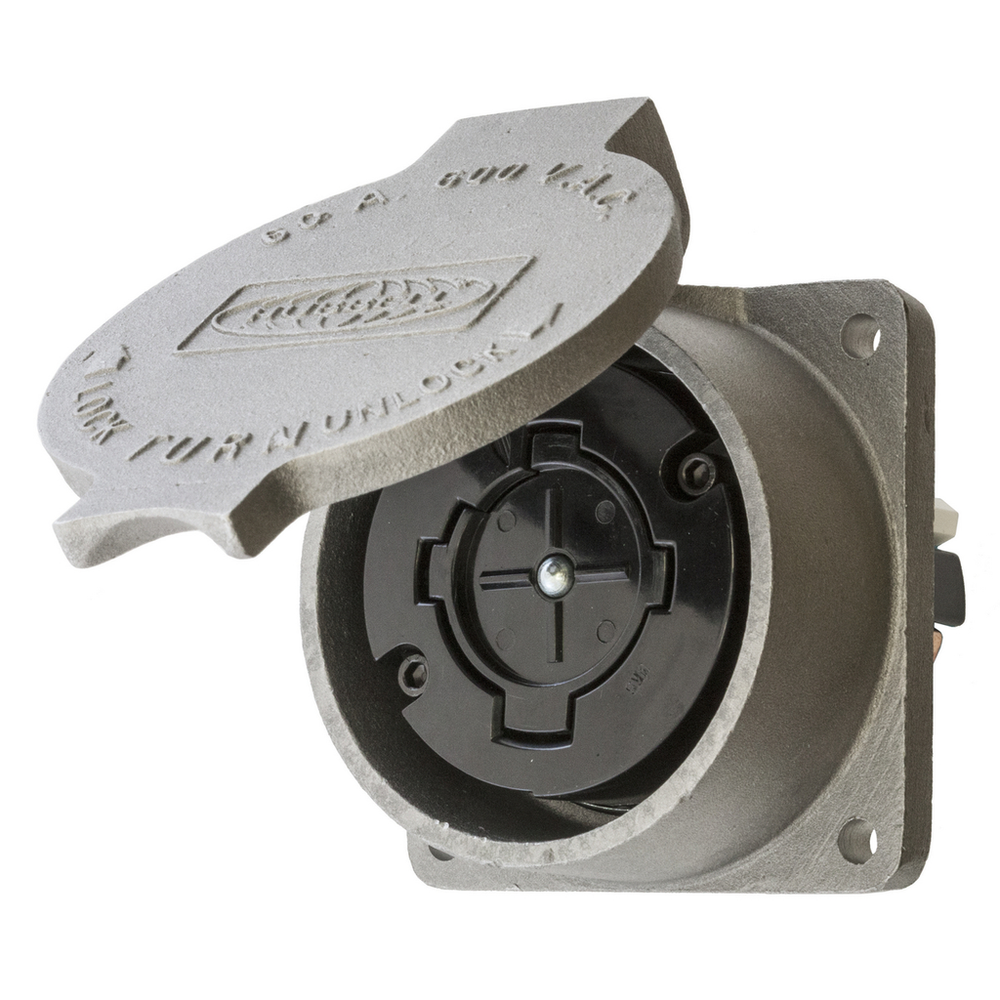

Locking Devices, Hubbellock®, Industrial, Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Black phenolic interior with short aluminum housing and lift cover, Non NEMA, Screw Terminal, MetallicLocking Devices, Hubbellock, Industrial, Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Non NEMA, Screw Terminal, Cast Aluminum, Short Housing.
Hubbell Wiring Device-Kellems HBL26410 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 60 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 6.495x12.745x9.375 (in)
- Carton - Gross Weight per Pack
- 9.35 lb.
- Carton - Number of Sub Packs
- 5
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585017303
- Carton - Total Units
- 5 EA
- Class Code
- A08
- Connectivity
- Screw Terminals
- Country of Origin
- PR
- Current / Amperage Rating
- 60 A
- Current Rating
- 60 A
- Description - Invoice
- H/LOCK RCPT, 3P4W, 60A 600V, SHORT BODY
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.5 in x 4.62 in x 3.58 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 4.620 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 3.58 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA Standard;Listed to UL Standard
- Length
- 3.5 in
- Lowest Level UOM
- Each
- Material
- Aluminum, Cast
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Moisture Resistance - IP44 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact);Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- Multi Phase
- Replaced Catalog Number
- 26410
- Size
- 3.5 in x 4.62 in x 3.58 in
- Special Features
- Auto Ejects Improperly Made Connection
- Standard
- Certified to CSA Standard;Listed to UL Standard
- Sub Class Code
- A08A170
- Type
- Receptacle
- Voltage Rating
- 600 V
- Voltage Rating Description
- 600 V
- Weight
- 1.7 lb.
- Width
- 4.620 in
- Wire Size
- #8 AWG to #4 AWG
