Description

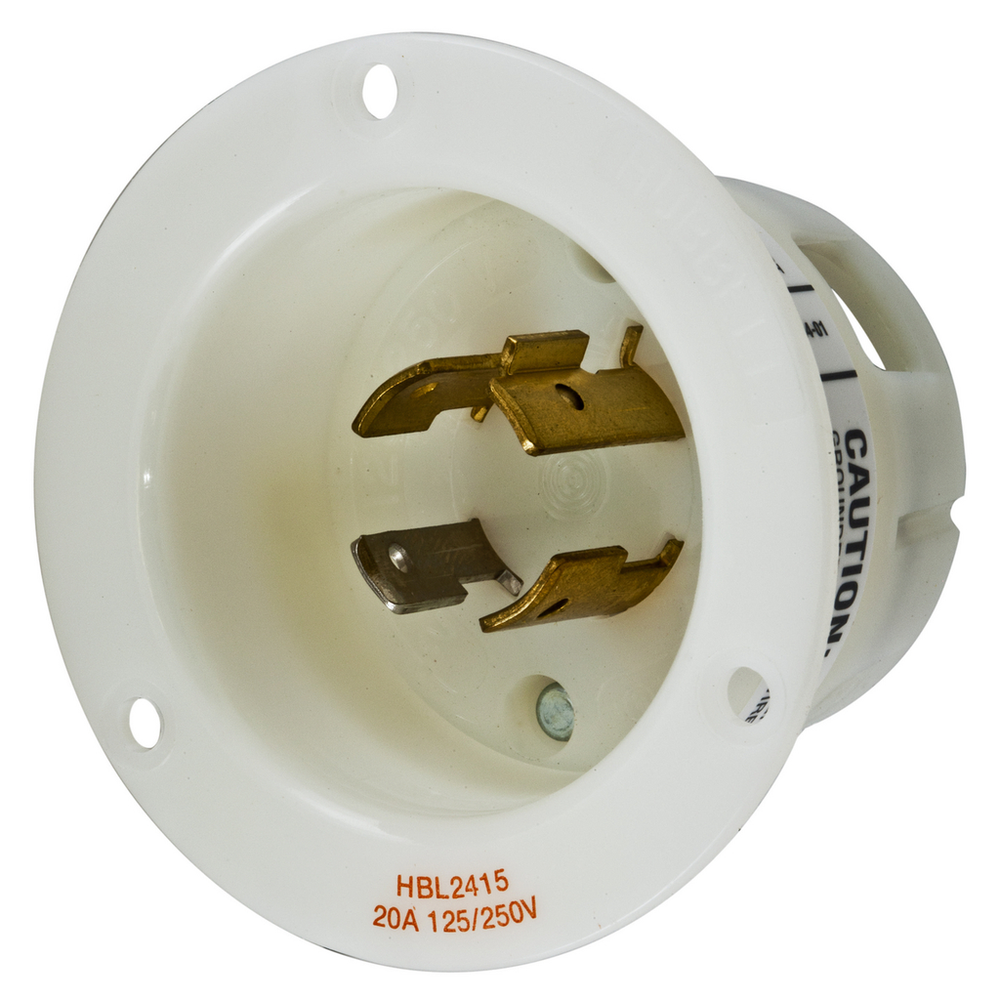

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Nylon casing, Back wired, White.Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20P, Screw Terminal, White
Hubbell Wiring Device-Kellems HBL2415 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 20 A
- Application
- Extra Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 6.245x10.375x8.245 (in)
- Carton - Gross Weight per Pack
- 3.100 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585038179
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- White
- Connectivity
- Screw Terminals
- Country of Origin
- US
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- LKG FLG-INLT, 20A 125/250V, L14-20P, WH
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.06 in x 3.06 in x 2.27 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 3.238 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.27 in
- Horsepower - Maximum
- 2 (1)
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Insulation
- Insulated Body
- Length
- 3.06 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L14-20P
- NEMA Rating
- L14-20P
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- Single Phase
- Replaced Catalog Number
- 2415
- Size
- 3.06 in x 3.06 in x 2.27 in
- Special Features
- Standard Product
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Sub Class Code
- A08A110
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Type
- Flanged Inlet
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250 VAC
- Weight
- 0.30 lb.
- Width
- 3.238 in
- Wire Size
- #16 AWG to #8 AWG
