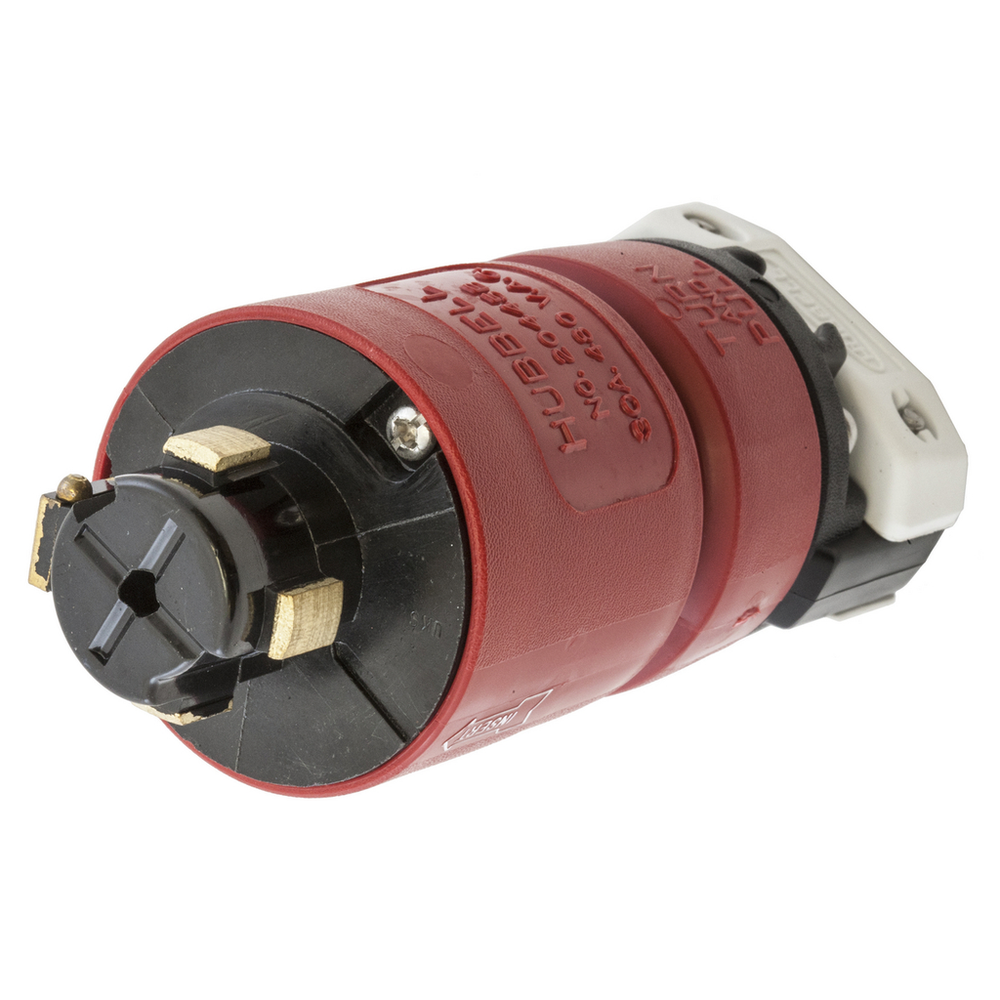

Hubbell HBL20445B
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Locking Devices, Hubbellock®, Industrial, Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding Hubbellock® Plug, Red nylon housing, Thermoset interior, Non-NEMA, Screw TerminalLocking Devices, Hubbellock, Industrial, Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Red
Hubbell Wiring Device-Kellems HBL20445B is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 30 A
- Base Unit of Measure
- EA
- BOX SIZE
- 6.125x14.745x9.555 (in)
- Cable Range
- 0.700 - 1.200 in
- Carton - Gross Weight per Pack
- 9.800 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585017266
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- Black, White
- Cord Diameter
- 0.700-1.200 in
- Cord Range
- 0.700"-1.200" (17.78-30.5)
- Country of Origin
- PR
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- H/LOCK PLUG, 30A 480V, 3P4W
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.33 in x 0.94 in x 5.63 in
- Each - Width
- 2.760 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 5.63 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA Standard;Listed to UL Standard
- Length
- 2.33 in
- Material
- Nylon
- MSDS Flag
- No
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage Withstand - 2,000V minimum;Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Replaced Catalog Number
- 20445B
- Size
- 2.33 in x 0.94 in x 5.63 in
- Standard
- Certified to CSA Standard;Listed to UL Standard
- Sub Class Code
- A08A170
- Type
- Plugs
- Voltage Rating
- 480 VAC
- Voltage Rating Description
- 480 VAC
- Weight
- 0.9 lb.
- Width
- 2.760 in
- Wire Size
- #10 AWG to #6 AWG
