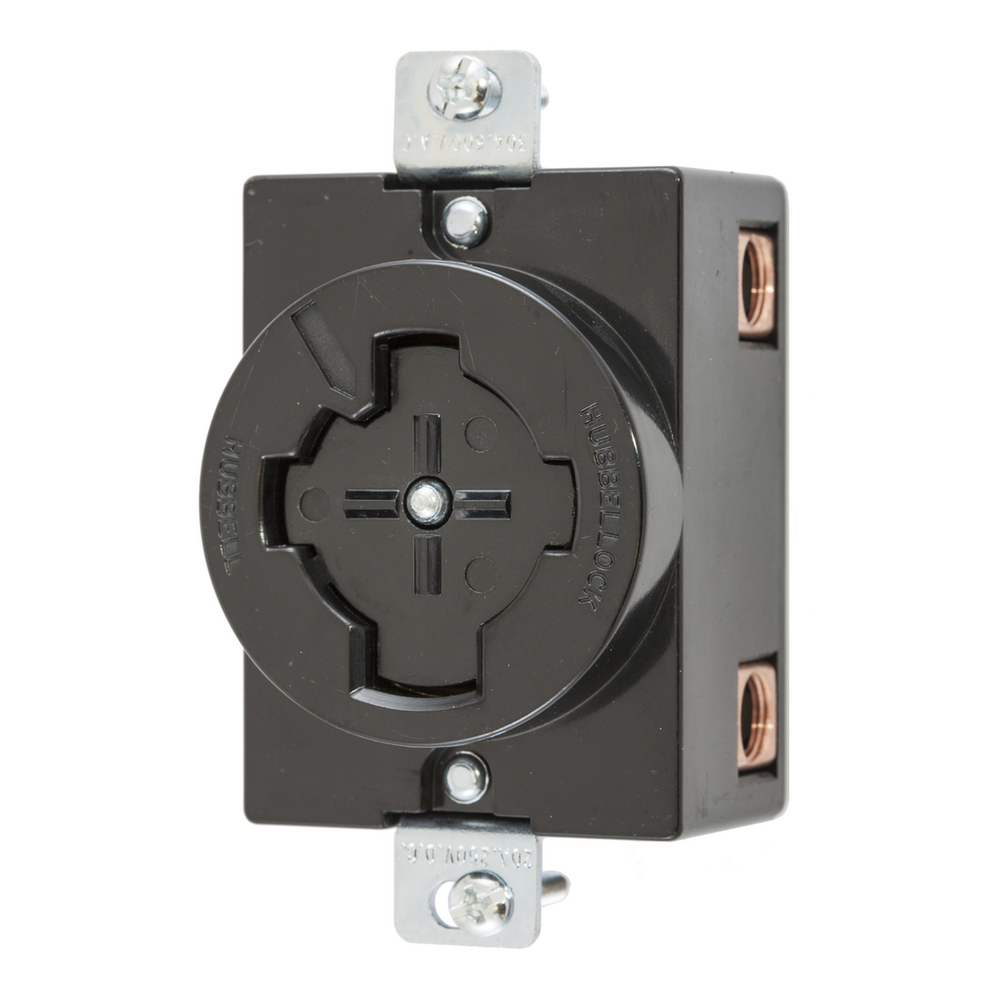

Hubbell HBL20403
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Hubbell Wiring Device-Kellems HBL20403 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 20/30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 5.300x11.700x9.200 (in)
- Carton - Gross Weight per Pack
- 11.9 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585017280
- Carton - Total Units
- 20 EA
- Class Code
- A08
- Connectivity
- Screw Terminals
- Country of Origin
- PR
- Current / Amperage Rating
- 20/30 A
- Current Rating
- 20 A
- Description - Invoice
- H/LOCK RCPT, 30A 600V, 3P4W
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.28 in x 1.94 in x 1.75 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 2.170 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.75 in
- Image Actual Or Representative
- A
- Length
- 3.28 in
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accomodation - #10 AWG - #6 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Replaced Catalog Number
- 20403
- Size
- 3.28 in x 1.94 in x 1.75 in
- Special Features
- Auto Ejects Improperly Made Connection
- Sub Class Code
- A08A170
- Type
- Receptacle
- Voltage Rating
- 250 VDC/600 VAC
- Voltage Rating Description
- 250 VDC/600 VAC
- Weight
- 0.55 lb.
- Width
- 2.170 in
- Wire Size
- #10 AWG to #6 AWG
Williams Automation sells Hubbell parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
