Hubbell HBL16S63D
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Switches and Lighting Controls, Industrial Grade, Switched Enclosures, Motor Disconnects, Three Pole, 60A 600V AC, Front Wired Terminal ScrewsSwitches and Lighting Controls, Industrial Grade, Switched Enclosures, Motor Disconnects, Three Pole, 60A 600V AC, Front Wired Terminal Screws

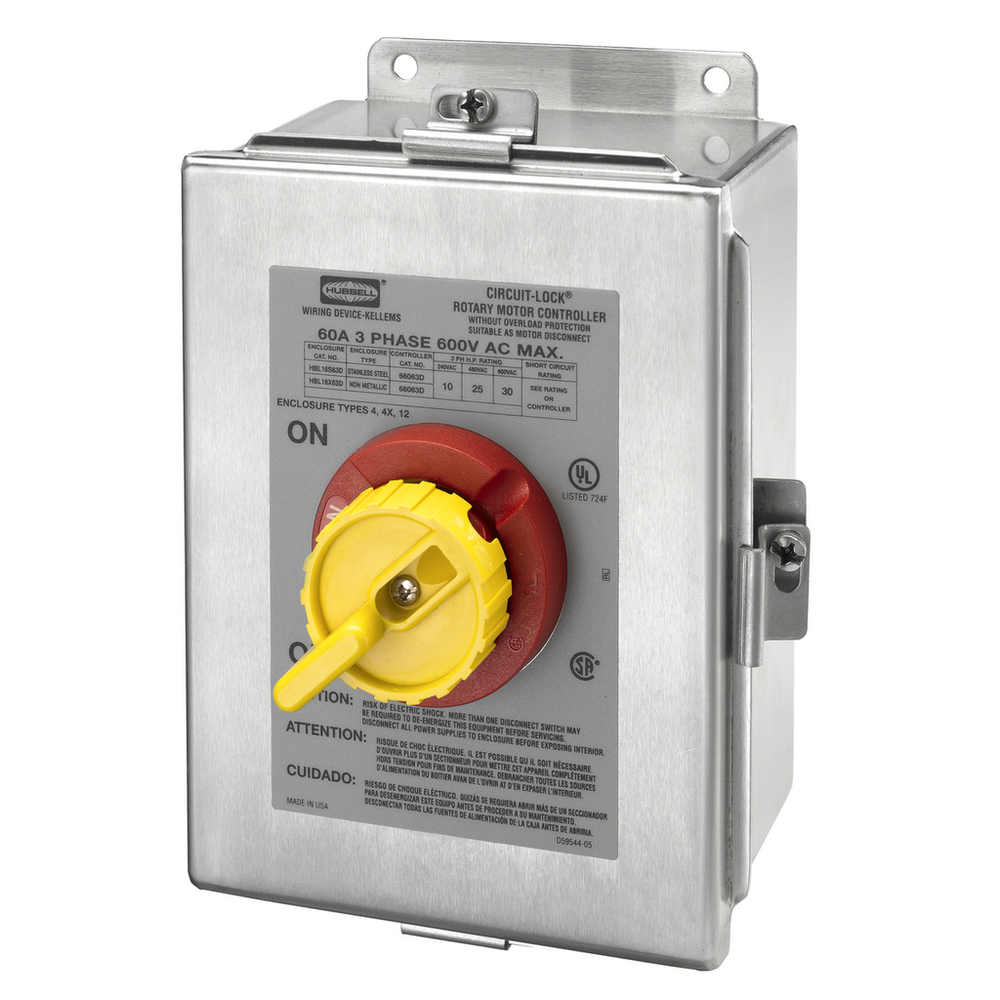

Hubbell Wiring Device-Kellems HBL16S63D is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 60 A
- Application
- Rotary
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585202778
- Class Code
- A16
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 60 A
- Current Rating
- 60
- Description - Invoice
- 60A 600V 3P RTRY DISC SW 4X SS
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Dimensions
- 8 in x 6.96 in x 8 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 8.300 in
- Enclosure Type
- NEMA 4X
- Environmental Conditions
- Indoor and Outdoor
- Freight Class Code
- 06168002
- Harmonization Code
- 8536509040
- Height
- 8 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Length
- 8 in
- Load Capacity
- Inductive
- Lowest Level UOM
- Each
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Operating Cycles
- 10,000 Cycles Minimum
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
- Phase
- Three Phase
- Series
- Non-Fused
- Size
- 8 in x 6.96 in x 8 in
- Special Features
- Rotary Operator
- Standard
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Style
- Standard Duty
- Sub Class Code
- A16A260
- Type
- Disconnect Switches
- Wattage
- 36000
- Weight
- 7.4 lb.
- Width
- 8.300 in
