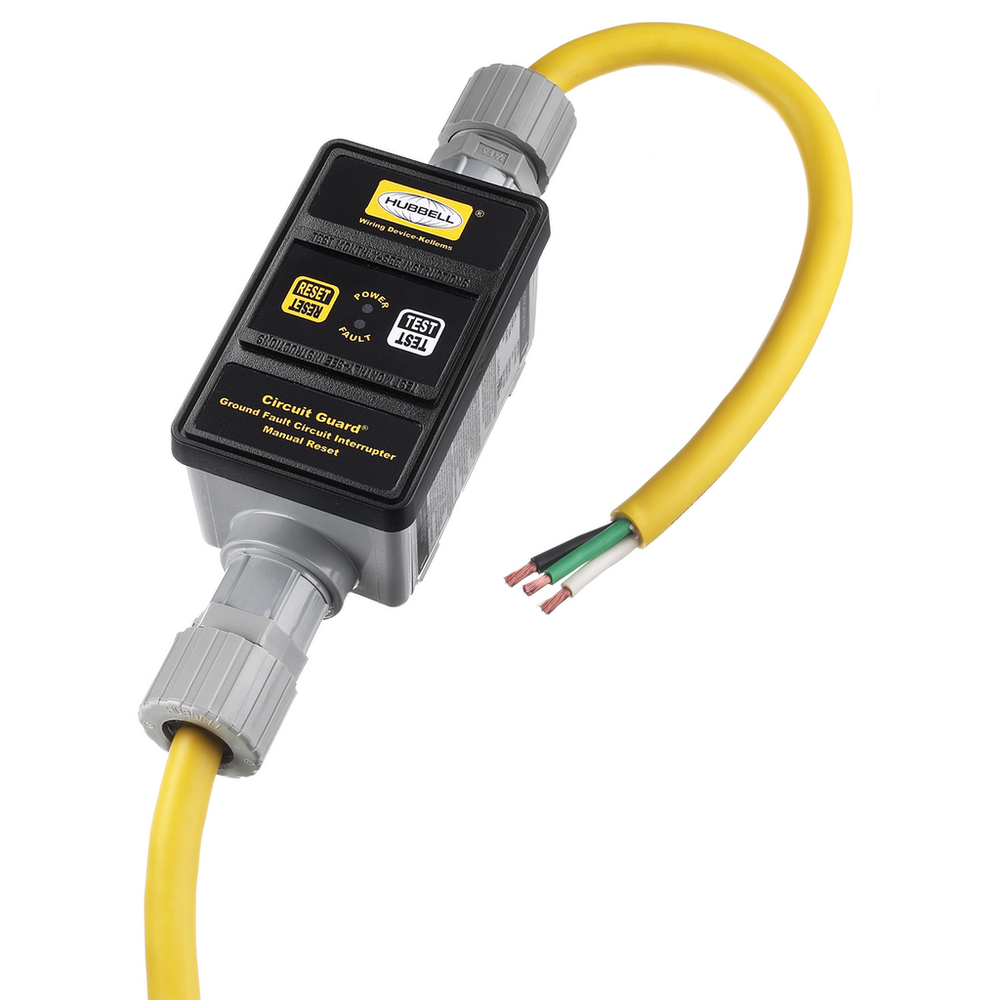

Hubbell GFP1305
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Hubbell Wiring Device-Kellems GFP1305 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 30 A
- Application
- Line Cord Only No Devices
- Base Unit of Measure
- EA
- BOX SIZE
- 7.100x18.000x14.000 (in)
- Carton - Gross Weight per Pack
- 19.500 lb.
- Carton - Number of Sub Packs
- 5
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585005645
- Carton - Total Units
- 5 EA
- Case - Total Units
- 50 EA
- Case Weight
- 195.000 lb.
- Class Code
- A40
- Color
- Black
- Conductor Size
- #10 AWG
- Conductor Type
- Copper
- Connectivity
- Plug-In
- Construction
- Fabricated
- Country of Origin
- US
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- PORT GFCI, 30A 120V, MAN, 6'
- Each - Pack Description
- Each
- Each - Width
- 12.300 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536308000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed
- Lowest Level UOM
- Each
- Material - Insulation
- Elastomer
- Material - Jacket
- PVC
- MSDS Flag
- No
- Number of Conductors
- 3
- Number Of Conductors
- 3
- Outside Diameter
- 0.335
- Performance
- Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC, 120/240V AC, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current- At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Meets UL943 Class A GFCI
- Series
- Extra Heavy Duty
- Special Features
- Manual Set
- Standard
- UL Listed
- Strands
- Multi
- Style
- Manual Set
- Sub Class Code
- A40A410
- Temperature Rating
- -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
- Type
- Portable, Straight Blade
- Voltage Rating
- 120 VAC
- Voltage Rating Description
- 120 VAC
- Weight
- 3.9 lb.
- Width
- 12.300 in
