Description

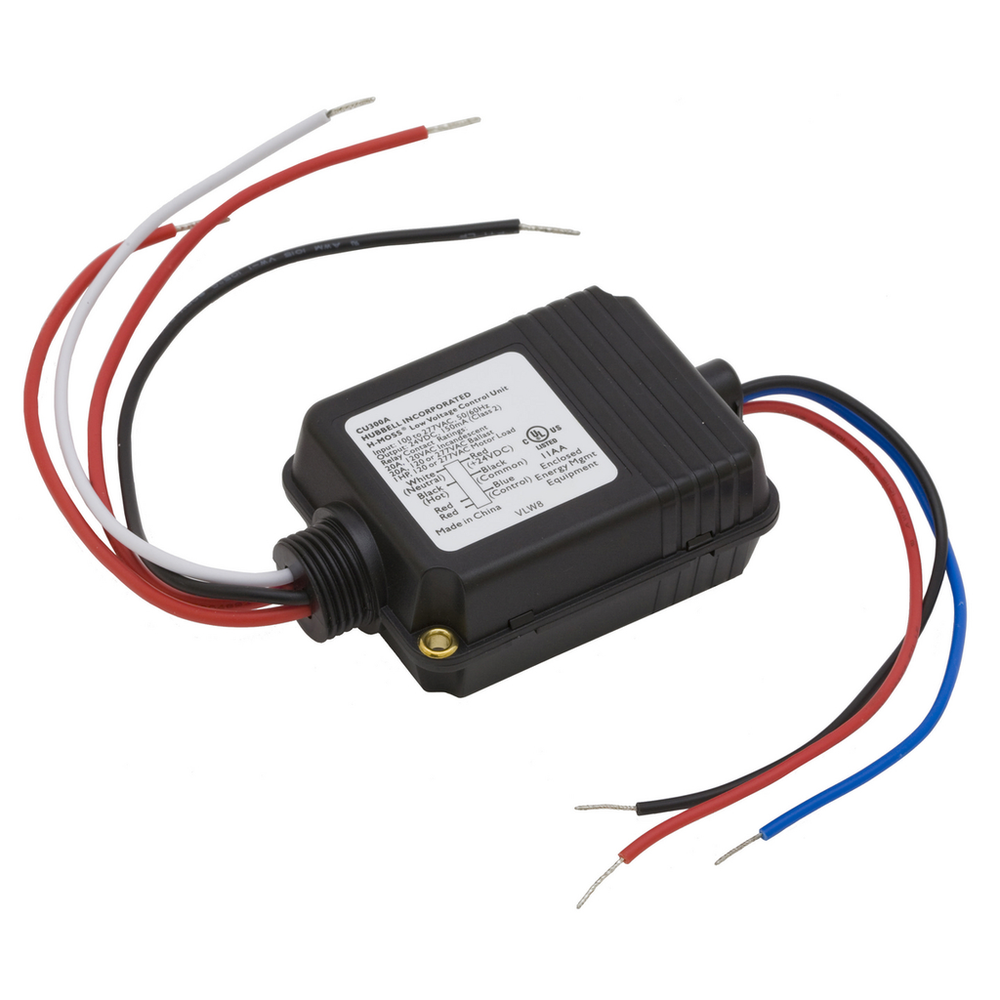

Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted SensorsSwitches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors
Hubbell Wiring Device-Kellems CU300A is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- For Use with 24V DC Sensors
- Base Unit of Measure
- EA
- BOX SIZE
- 6.000x18.000x8.000 (in)
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585181004
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 17.500 lb.
- Class Code
- A48
- Color
- Black
- Control Output
- Relay Contacts
- Country of Origin
- CN
- Description - Invoice
- 120/277V HMOSS CONTROL UNIT
- Dimensions
- 3.69 in x 2.33 in x 1.36 in
- Each - Pack Description
- Each
- Each - Width
- 2.300 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Frequency Rating
- 50/60 Hz
- Harmonization Code
- 8536490075
- Height
- 1.36 in
- Humidity
- 0% to 95% non-condensing relative humidity
- Image Actual Or Representative
- A
- Industry Standard(s)
- ASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
- Length
- 3.69 in
- Load
- Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts277V Ballast- 0 to 5540 Watts
- Load Capacity
- Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts277V Ballast- 0 to 5540 Watts
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Operating Cycles
- 6,000 Cycles Minimum
- Operating Temperature
- 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
- Pallet Height
- 54.000 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 315.000 lb.
- Pallet Width
- 48.000 in
- Performance
- Electrical - AT Sensor/AAR Capacity - 1 to 4 combined;Electrical - Load Capacity - Incandescent - 0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 277V Ballast- 0 to 5540 watts;Electrical - Power Output - 24V DC, 150mA;Electrical - Power Supply - 120-277V AC, 50/60Hz;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C), 0% to 90% non condensing relative humidity;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 90% non condensing relative humidity
- Replaced Catalog Number
- CU120;CU120A;CU230;CU230A;CU277;CU277A
- Series
- Dual;Ultrasonic;Passive Infrared
- Size
- 3.69 in x 2.33 in x 1.36 in
- Special Features
- Standard Product
- Standard
- ASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
- Storage Temperature Range
- -20°F to 150°F (-29°C to 65°C)
- Style
- Control Units
- Sub Class Code
- A48A450
- Supply Voltage
- 120/277V AC V
- Type
- Accessories
- Voltage Rating
- 24 VDC
- Voltage Rating Description
- 24V DC
- Width
- 2.300 in
