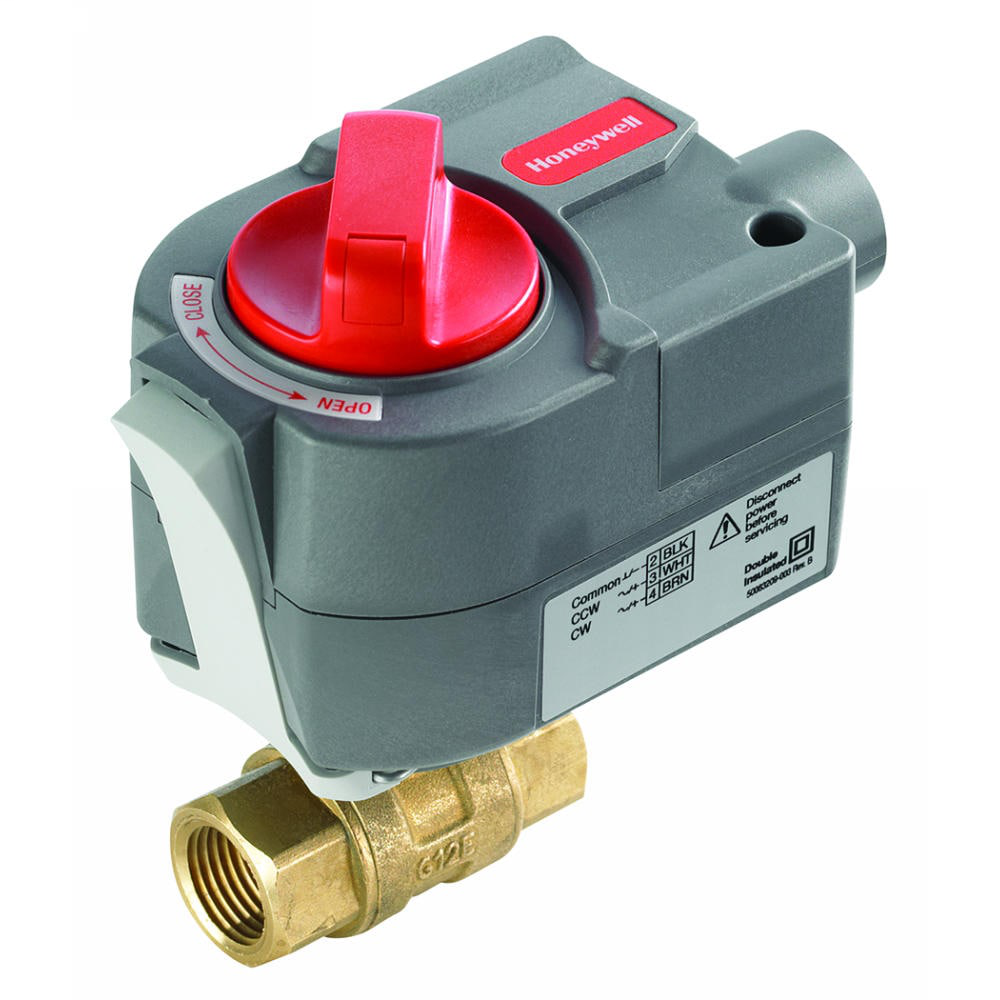

Honeywell VBN2F2PX0000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Honeywell’s characterized control ball valves feature a parabolic flow insert that’s integral to the ball. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. Honeywell control ball valves are available with three types of actuator mounting brackets. In 1/2” to 1 1/4” size, we offer the MVN actuator family with two mounting options: one standard height profile, and one lower height profile when space constraints require more compact assemblies. Finally we offer a mounting bracket for standard Honeywell direct coupled actuators (DCA), in all sizes to provide maximum flexibility in actuator choice.Actuated Ball Valves, VBN2F266.00PX--2in 2-way 266CV Brass Trim DCA Profile
Honeywell VBN2F2PX0000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Mount
- Direct Coupled Actuator (DCA) Bracket
- Close-Off
- 100 psi
- Controlled Media
- Chilled or hot water- up to 50% Glycol
- Flow Coefficient
- 266 CV
- Gas Approvals
- Not for gas use
- Includes
- MN/MS actuator mounting bracket
- Leakage
- Less than 0.01% of Cv
- Leakage Class
- ANSI Class IV
- Manual Operation Type
- Manual handle integral to actuator bracket
- Maximum Body Pressure Rating
- 360 psi ; 2482 kPa
- Maximum Media Temperature
- 250 °F ; 121 °C
- Maximum Operating Ambient Temperature
- 140 °F ; 60 °C
- Media Restrictions
- Not for use with steam or fuels
- Minimum Media Temperature
- -22 °F ; -30 °C
- Minimum Operating Ambient Temperature
- -5 °F ; -20 °C
- Overall Height
- 10.65 in ; 271 mm
- Overall Length
- 3.5 in ; 89 mm
- Overall Width
- 7.69 in ; 195 mm
- Pipe Connection Size
- 2 in ; 50 DN
- Pipe Connection Type
- Female NPT
- Valve Ball Material
- Nickel-Chrome Plated Brass
- Valve Body Material
- Forged Brass ASTM B283-06
- Valve Body Pattern
- 2-way
- Valve Flow Characteristic
- Linear
- Valve Flow Insert Material
- Noryl®
- Valve Handle Length
- 2 in ; 50.8 mm
- Valve Handle Material
- Plenum rated plastic
- Valve Operating Range
- 90 °
- Valve Rangeability Ratio
- 877
- Valve Seal Material
- Teflon„¢ with EPDM o-ring
- Valve Stem Material
- Nickel-Chrome Plated Brass
- Valve Trim
- Nickel-Chrome Plated Brass
