Hirschmann 934451521
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

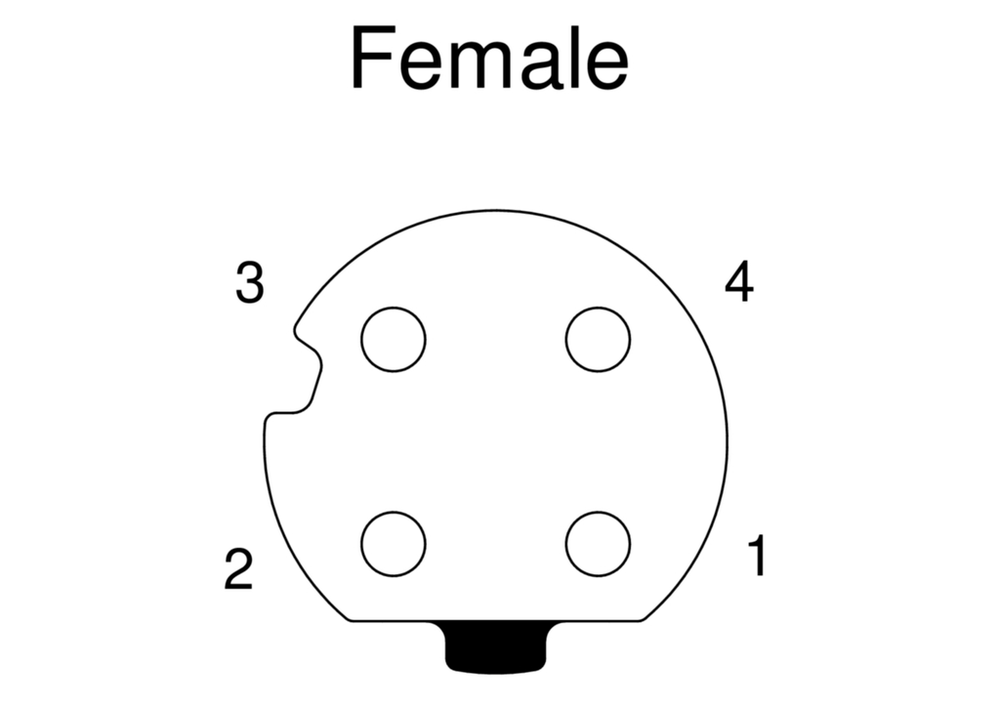

Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 - mating side, angled print contacts - connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A934451521 - EF12LW OCTOPUS - Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 - mating side, angled print contacts - connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A
Hirschmann 934451521 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
Materials
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Contact Base Material
- CuZn
- Contact Bearer Color
- Blue
- Contact Bearer Material
- PA
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94 V-2
- Housing Color
- Silver
- Housing Material
- CuZn
- Housing Plating
- Nickel-plated
- O-Ring Material
- FKM
- Potted
- no
Notes
- Note
- The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures.
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Item Description
- EF12LW OCTOPUS
Technical Data
- Ambient Temperature (Operation)*
- 25 °C - + 90 °C
- Attachment Type
- Screw-Locking
- Brand
- Hirschmann
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- D
- Connecting Side
- Angled Print Contacts
- Connector Design
- Rear Mount
- Connector Type
- Receptacle
- Contact Resistance
- ≤ 10 mOhm
- Data Transmission Rate
- Fast Ethernet Cat5e
- Design Standard
- In style of IEC 61076-2-101
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Mating Side
- M12
- Number of Pins
- 4
- Operating Voltage
- 50 V AC / 60 V DC
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Data Connectors
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating**
- IP65, IP67
- Rated Current*
- 4 A
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 60 V
- Thread Material
- CuZn
- Thread Plating
- Nickel-plated
- Type of Connection
- PCB
- Type of Contact / Gender
- Female
