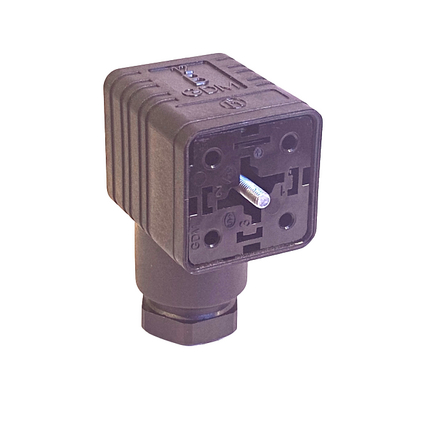

Hirschmann 934395100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
GDM - 175301-803 (DIN 43650), Form A, Female, 18mm, Black housing, 3+Ground (Protective Earth). screw contacts, without circuitry, 250 V AC/DC, 16A, cable gland M16 thread934395100 - GDM 3016 Black - DIN Valve Connector, Form A, Field Attachable, 3+Ground, M16, Black Housing, without circuitry, 250 V
Hirschmann 934395100 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- (50-60) Ncm
- Fastening Torque (Cable Gland)
- (250-375) Ncm
- Fastening Torque (Contact Screw)
- (40-50) Ncm for conductor size 0.25 - 1.5 mm²; (30-40) Ncm for conductor size 0.34 mm²; (25-30) Ncm for conductor size 0.25 mm²
Approvals
- SEV
- Yes
- VDE
- Yes
Materials
- Attachment Material
- Steel, Philips combi slot
- Cable Gland Color
- Black
- Cable Gland Gasket
- NBR
- Cable Gland Material
- PA GF
- Contact Base Material
- CuZn
- Contact Bearer Color
- Black
- Contact Plating
- Cu/Sn
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Housing)
- UL 94 HB
- Gasket Material
- Sold separately
- Housing Color
- Black
Notes
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- * only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Safety & Environmental Compliance
- RoHS Compliant
- Yes
Specifications
- Central Screw
- 1- SteelScrew, Combi Head
- Gasket
- 0 - Sold Seperately
- Item Description
- GDM 3016 Black
- Packaging
- F - Collect packaging 200 pieces, assembled
- Replaced By
- ID: 934888101 Name: GDM3106-A0U-10F
Technical Data
- Ambient Temperature (Operation)*
- -40 °C - +125 °C
- Attachment Type
- Central Screw
- Brand
- Hirschmann
- Cable Gland
- M16
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- A
- Conductor Cross Section
- 0.25 - 1.5 mm²
- Connector Design
- Angled
- Connector Type
- Field Attachable
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 175301-803-A, ISO 4400
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 50
- Number of Pins
- 3+PE (PE across cable outlet)
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Valve Connectors
- Product Sub Family
- GDM Legacy
- Protection Degree / IP Rating**
- IP65
- Rated Current*
- 16 A
- Rated Impulse Voltage
- 4.0 kV
- Rated Voltage
- 250 V
- Shielding
- Unshielded
- Suitable Cables
- Ø 4.0 - 10 mm
- Type of Contact / Gender
- Female
