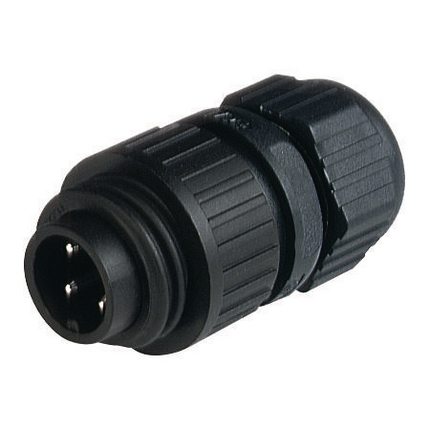

Hirschmann 934124100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Hirschmann 934124100 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Accessories to Order Separately
- 831-530-400: CA00 SD 1, cap
- Fastening Torque (Cable Gland)
- TR22: min. 250 Ncm
- Fastening Torque (Contact Screw)
- M 3: (30-35) Ncm
- Mating Connectors / Fitting to
- 934-125-100 CA 3 LD (field attachable, straight), 934-129-100 CA 3 W LD (field attachable, angled), 932-321-100 CA 3 GD (receptacle, straight)
Approvals
- UL-File
- E95522, Series CA 3
- VDE
- VDE-Reg.-Nr. 2745
Materials
- Attachment Material
- PA 66 GF
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA 66 GF
- Contact Plating
- Cu/Ag
- Flammability Class (Attachment)
- UL 94 V-0
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Gasket Material
- NBR
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Specifications
- Cable Gland Material
- PA 66
- Housing Color
- black
- Housing Material
- PA 66
- Item Description
- CA 3 LS
Technical Data
- Ambient Temperature (Operation)
- -40°C to +90°C, notice derating
- Attachment Type
- Coupling Screw
- Brand
- Hirschmann
- Cable Gland
- TR22
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Conductor Cross Section
- 0.5 mm² to 2.5 mm²
- Connector Design
- straight
- Connector Type
- Field Attachable
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 61984 (VDE 0627)
- Number of Pins
- 4(3+PE)
- Operating Voltage
- 230 V DC, 400V AC
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Power Connector
- Product Sub Family
- CA-Series
- Protection Degree / IP Rating
- IP66, IP67
- Rated Current
- 10 A DC, 16 A AC (1.5 mm²)
- Rated Impulse Voltage
- 6.0 kV
- Rated Voltage
- 250 V DC, 400V AC
- Shielding
- Unshielded
- Strain-Relief
- clamping cage
- Suitable Cables
- Ø6 mm to Ø12 mm, Gasket Ø9 mm for cables with Ø6 - 9 mm, Gasket Ø12 mm for cables with Ø9 - 12 mm
- Temperature Range (Gasket)
- -40°C to +90°C
- Type of Connection
- screw terminal
- Type of Contact / Gender
- male
Williams Automation sells Hirschmann parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
