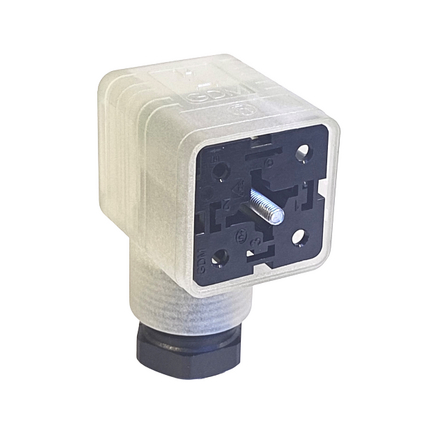

Hirschmann 933925212
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
GDM - 175301-803 (DIN 43650), Form A, Female, 18mm, Translucent Housing, 2+Ground (Protective Earth). screw contacts, PCB with Bridge Rectifer, Red LED, and Varistor, 48 AC/DC, 1A, grey cable gland PG11 thread933925212 - GDML 2011 GB1 LED 48 black - DIN Valve Connector, Form A, Field Attachable, 2+Ground, PG11, Translucent Housing, with Bridge Rectifer, LED, and Protective Circuit, 48 V
Hirschmann 933925212 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- (50-60) Ncm
- Fastening Torque (Cable Gland)
- (250-375) Ncm
- Fastening Torque (Contact Screw)
- (40-50) Ncm for conductor size 0.25 - 1.5 mm²; (30-40) Ncm for conductor size 0.34 mm²; (25-30) Ncm for conductor size 0.25 mm²
Approvals
- SEV
- Yes
- VDE
- Yes
Materials
- Attachment Material
- Steel, Philips combi slot
- Cable Gland Color
- Black
- Cable Gland Gasket
- NBR
- Cable Gland Material
- PA GF
- Contact Base Material
- CuZn
- Contact Bearer Color
- Black
- Contact Plating
- Cu/Sn
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Housing)
- UL 94 HB
- Gasket Material
- Sold separately
- Housing Color
- Translucent
Notes
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- * only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Protection Circuitry
- Function Indicator
- Red LED
- Protective Circuit
- Varistor
Safety & Environmental Compliance
- RoHS Compliant
- Yes
Specifications
- Central Screw
- 1- Steel Screw, Combi Head
- Gasket
- 0 - Sold Separately
- Item Description
- GDML 2011 GB1 LED 48 black
- Packaging
- D - Collect packaging 50 pieces, assembled
Technical Data
- Ambient Temperature (Operation)*
- -40 °C - +80 °C
- Attachment Type
- Central Screw
- Brand
- Hirschmann
- Cable Gland
- PG11
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- A
- Conductor Cross Section
- 0.25 - 1.5 mm²
- Connector Design
- Angled
- Connector Type
- Field Attachable
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 175301-803-A, ISO 4400
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 50
- Number of Pins
- 2+PE (PE across cable outlet)
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Valve Connectors
- Product Sub Family
- GDM Legacy
- Protection Degree / IP Rating**
- IP65
- Rated Current*
- 1 A
- Rated Impulse Voltage
- 4.0 kV (PCBA 2.0 kV)
- Rated Voltage
- 48 V
- Shielding
- Unshielded
- Suitable Cables
- Ø 6 - 9 mm
- Type of Contact / Gender
- Female
