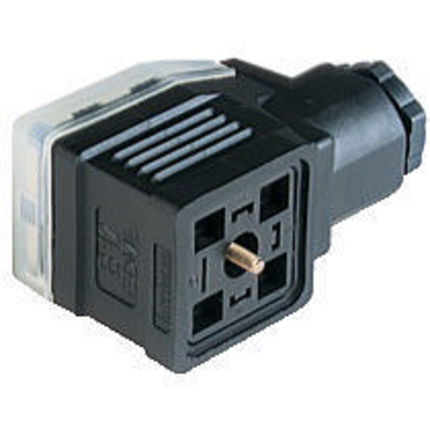

Hirschmann 933022100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
GDME Heavy Duty DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), black housing with transparent cover, screw type, PG11; without circuitry, 230 V DC / 400 V AC AC/DC, 16 A933022100 - GDME 3011 black - GDME Heavy Duty DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), black housing with transparent cover, screw type, PG11; without circuitry, 230 V DC / 400 V AC AC/DC, 16 A
Hirschmann 933022100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- (50-60) Ncm
- Fastening Torque (Cable Gland)
- (150-200) Ncm
- Fastening Torque (Contact Screw)
- (50-60) Ncm
- Fastening torque (strain relief screw)
- (50-60) Ncm
Approvals
- SEV
- yes
- VDE
- yes
Materials
- Attachment Material
- Steel, Philips combi slot
- Cable Gland Color
- Black
- Cable Gland Gasket
- NBR
- Cable Gland Material
- PA GF
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA GF
- Contact Plating
- Cu/Sn
- Cover Material
- PA GF
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Flammability Class (Cover)
- UL 94 HB
- Flammability Class (Housing)
- UL 94 V-0
- Gasket Material
- Sold separately
- Housing Color
- Black housing with transparent cover
- Housing Material
- PA GF
- Strain-Relief Material
- PA GF
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Item Description
- GDME 3011 black
Technical Data
- Ambient Temperature (Operation)
- -25 °C - +85 °C
- Attachment Type
- Central Screw
- Brand
- Hirschmann
- Cable Gland
- PG11
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- A
- Conductor Cross Section
- 0.25 - 1.5 mm²
- Connector Design
- Angled
- Connector Type
- Field attachable
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 175301-803-A, ISO 4400
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 50
- Number of Pins
- 3+PE (PE across cable outlet)
- Operating Voltage
- 230 V DC / 400 V AC
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Valve Connectors
- Product Sub Family
- GDME Heavy Duty
- Protection Degree / IP Rating
- IP65
- Rated Current
- 16 A
- Rated Impulse Voltage
- 4.0 kV
- Shielding
- Unshielded
- Strain-Relief
- Bracket
- Suitable Cables
- Ø 4.5 - 11 mm
- Type of Connection
- Screw
- Type of Contact / Gender
- Female
