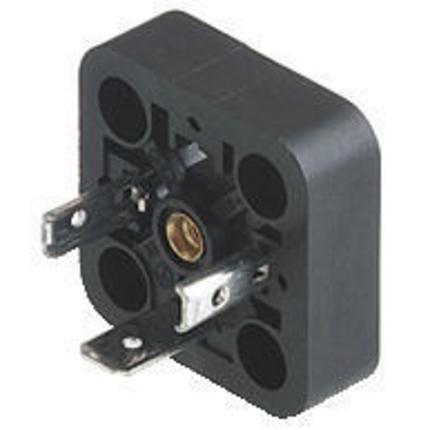

Hirschmann 932967100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Hirschmann 932967100 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Contact Screw)
- (50-60) Ncm
- Fastening torque (mounting screw)
- (50-60) Ncm
- Mounting
- M3 (2x)
Approvals
- CSA
- yes
- SEV
- yes
- UL
- UL 1977; UR
- UL-File
- E95522
- VDE
- yes
Materials
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA GF
- Contact Plating
- Cu/Sn
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Housing Color
- black
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Item Description
- GSA 2000 N
Technical Data
- Ambient Temperature (Operation)
- -40 °C - +125 °C
- Attachment Type
- Central Screw
- Brand
- Hirschmann
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- A
- Conductor Cross Section
- 0.08 - 1.5 mm²
- Connector Design
- Straight
- Connector Sub Type
- Rectangular receptacle with solder contacts and without oblong holes
- Connector Type
- Receptacle
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 175301-803-A, ISO 4400
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 50
- Number of Pins
- 2+PE
- Operating Temperature (UL)
- max. + 90 °C
- Operating Voltage
- 400 V AC/DC
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Valve Connectors
- Product Sub Family
- GSA
- Protection Degree / IP Rating
- IP65
- Rated Current
- 16 A
- Rated Current (CSA)
- 10 A
- Rated Current (UL)
- 15 A
- Rated Impulse Voltage
- 4.0 kV
- Rated Voltage (CSA)
- 250 V
- Rated Voltage (UL)
- 300 V
- Shielding
- Unshielded
- Type of Connection
- Solder / PE Screw
- Type of Contact / Gender
- Male
