Hirschmann 932511106
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

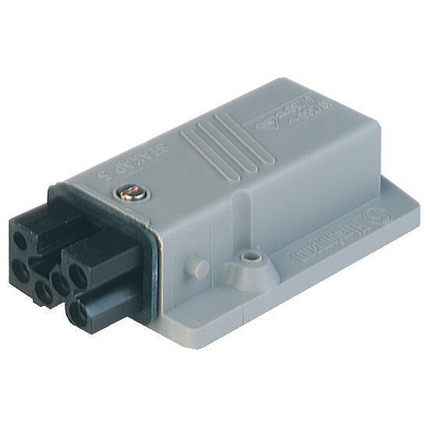

Rectangular Receptacle Power Connector (ST Series): Female, panel mount, 5-pin+PE, grey housing, 400 V AC / 230 V DC, 10 A AC/6 A DC932511106 - STAKAP 5 - Rectangular Receptacle Power Connector (ST Series): Female, panel mount, 5-pin+PE, grey housing, 400 V AC / 230 V DC, 10 A AC/6 A DC
Hirschmann 932511106 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Accessories to Order Separately
- STASI 3, 732-045-…, safety bracket
- Fastening Torque (Attachment)
- BZ 2.9x14: (40-50) Ncm
- Fastening torque (mounting screw)
- M 2.5: (40-50) Ncm, flange
- Mounting
- Screw: M 2.5 (3x)
Approvals
- SEV
- SEV
- VDE
- VDE 61984
Materials
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA GF
- Contact Plating
- Cu/Ag
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Flammability Class (Housing)
- UL 94 HB
- Gasket Material
- NBR
- Housing Color
- grey
- Housing Material
- PA GF
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- * only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Specifications
- Item Description
- STAKAP 5
Technical Data
- Ambient Temperature (Operation)*
- -30°C to +90°C, notice Derating
- Attachment Type
- safety bracket
- Brand
- Hirschmann
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Conductor Cross Section
- 0.25 mm² to 1.00 mm²
- Connector Design
- Panel Mount with flange
- Connector Type
- Receptacle
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 61984 (VDE 0627)
- Mating Cycles
- max. 50
- Number of Pins
- 5+PE
- Operating Voltage
- 400 V AC / 230 V DC
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Power Connector
- Product Sub Family
- ST-Series
- Protection Degree / IP Rating**
- IP54
- Rated Current*
- 10 A AC / 6 A DC
- Rated Impulse Voltage
- 2.5 kV
- Rated Voltage
- 400 V AC / 250 V DC
- Shielding
- Unshielded
- Temperature Range (Gasket)
- -30°C to +90°C
- Type of Connection
- crimp
- Type of Contact / Gender
- female
