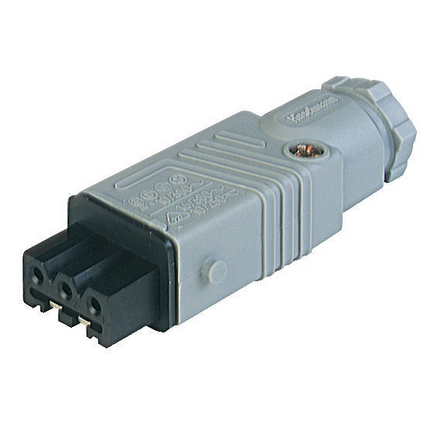

Hirschmann 932140106
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Rectangular Field Attachable Power Connector (ST Series): Female, straight with strain relief , 3-pin+PE, grey housing, 400 V AC/230 V DC, 16 A AC/10 A DC932140106 - STAK 3 N grey - Rectangular Field Attachable Power Connector (ST Series): Female, straight with strain relief , 3-pin+PE, grey housing, 400 V AC/230 V DC, 16 A AC/10 A DC
Hirschmann 932140106 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Accessories to Order Separately
- STASI 3, 732-045-…, safety bracket
- Fastening Torque (Attachment)
- BZ 2.9x14: (40-50) Ncm
- Fastening Torque (Cable Gland)
- PG 11: (250-375) Ncm
- Fastening Torque (Contact Screw)
- M 3: (30-40) Ncm
- Fastening torque (strain relief screw)
- BZ 2.9x14: (40-50) Ncm
Approvals
- SEV
- SEV
- UL
- UL
- UL-File
- E95522
- VDE
- VDE 61984
Materials
- Cable Gland Color
- grey
- Cable Gland Gasket
- SBR /NBR (cable gland)
- Cable Gland Material
- PA 6 GF
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA 66 GF
- Contact Plating
- Cu/Sn
- Flammability Class (Cable Gland)
- UL 94 V-0
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Flammability Class (Housing)
- UL 94 HB
- Gasket Material
- NBR (flat gasket)
- Housing Color
- grey
- Housing Material
- PA 6 GF
- Strain-Relief Material
- PA GF
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Specifications
- Item Description
- STAK 3 N grey
Technical Data
- Ambient Temperature (Operation)
- -30°C to +90°C, notice Derating
- Attachment Type
- safety bracket
- Brand
- Hirschmann
- Cable Gland
- PG 11
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Conductor Cross Section
- 0.25 mm² to 1.50 mm²
- Connector Design
- Straight with strain relief
- Connector Type
- Field attachable
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 61984 (VDE 0627)
- Mating Cycles
- max. 50
- Number of Pins
- 3+PE
- Operating Voltage
- 400 V AC / 230 V DC
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Power Connector
- Product Sub Family
- ST-Series
- Protection Degree / IP Rating
- IP54
- Rated Current
- 16 A AC / 10 A DC
- Rated Impulse Voltage
- 2.5 / 4.0 kV
- Rated Voltage
- 400 V AC / 250 V DC
- Shielding
- Unshielded
- Strain-Relief
- Cable clamp
- Suitable Cables
- Ø6 mm to Ø10 mm
- Temperature Range (Gasket)
- -30°C to +90°C
- Type of Connection
- screw terminal
- Type of Contact / Gender
- female
