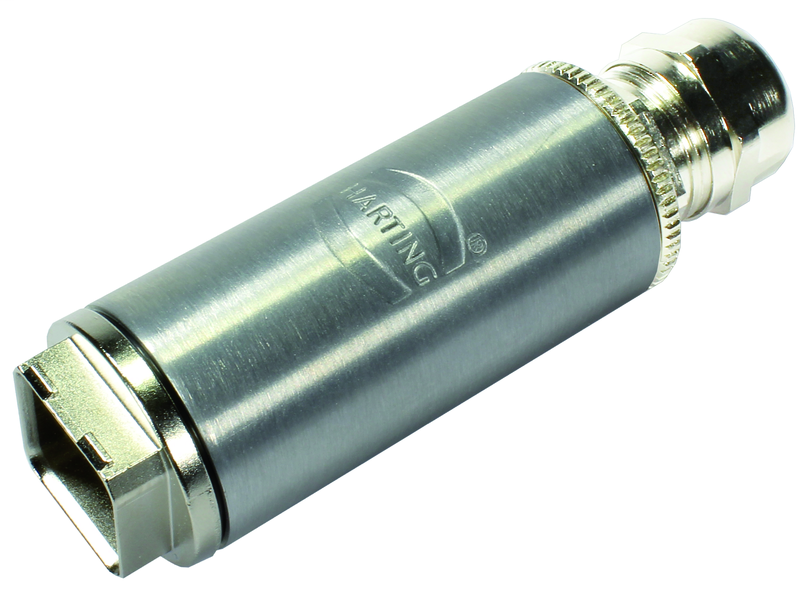

Harting 6104201108401
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Harting 6104201108401 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85366990
- Net weight
- 129 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Connector sets
- Features
- Intuitive locking mechanism
- Identification
- RJ45
- Series
- Han
- Specification
- AIDA compliant || Coupling
Material properties
- China RoHS
- 50
- Colour (hood/housing)
- Silver
- ELV status
- compliant with exemption
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Aluminium die-cast
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
Specifications and approvals
- Approvals
- DNV GL
- PROFINET
- Yes
- Specifications
- IEC 61076-3-117 Variant 14 (V14) || IEC 60603-7 Mating face
Technical characteristics
- Cable diameter
- 6 ... 12 mm
- Conductor cross-section
- AWG 24 ... AWG 22 Solid || AWG 24 ... AWG 22 Stranded
- Data rate
- 10 Mbit/s || 100 Mbit/s || 1 Gbit/s || 10 Gbit/s
- Degree of protection acc. to IEC 60529
- IP65 || IP67
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- ≥ 750
- Rated current
- 1.75 A
- Rated voltage
- 50 V
- Transmission characteristics
- Cat. 6 Class E up to 250 MHz
- Wire outer diameter
- ≤ 1.6 mm
Version
- Locking type
- PushPull
- Number of contacts
- 8
- Pack contents
- Hoods/Housings || Female || Cable gland
- Shielding
- Fully shielded, 360° shielding contact
- Termination method
- preLink
- Version
- Top entry
Williams Automation sells Harting parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
