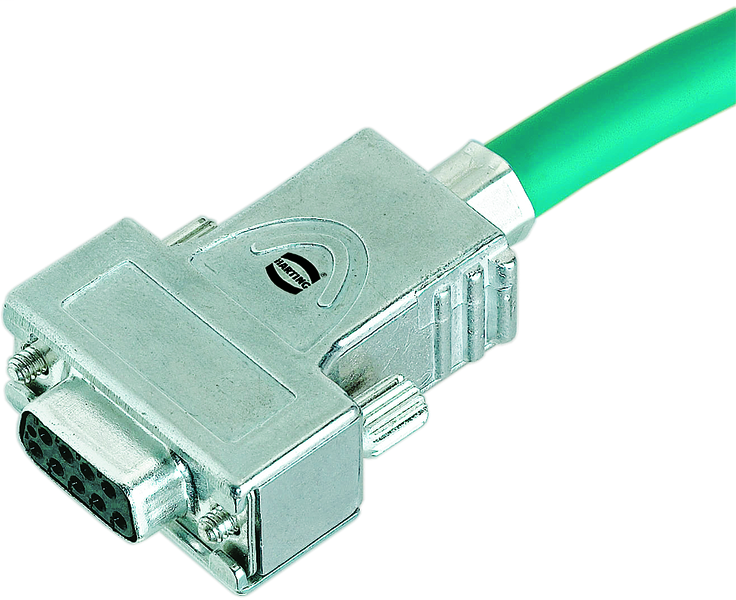

Harting 61030013019
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Shell housing, With internal earth, Size: D-Sub 5, Knurled screw, Thread M3, Top/side entry, 3x, Material (hood/housing): Zinc die-cast, Degree of protection: IP30Shell housing, With internal earth, Size: D-Sub 5, Knurled screw, Thread M3, Top/side entry, 3x, Material (hood/housing): Zinc die-cast
Harting 61030013019 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- China
- eCl@ss
- 27440213 D-Sub hood
- European customs tariff number
- 85389099
- Net weight
- 84.5 g
- Packaging size
- 1
Identification
- Category
- Hoods/Housings
- Description of hood/housing
- With internal earth
- Series of hoods/housings
- D-Sub InduCom
- Type of hood/housing
- Shell housing
Material properties
- China RoHS
- 50
- ELV status
- compliant with exemption
- Height
- 17.6 mm
- Length
- 44.1 mm
- Material (hood/housing)
- Zinc die-cast
- Material (screw)
- Steel, nickel plated
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- Width
- 67.1 mm
Technical characteristics
- Ambient temperature
- -20 ... +90 °C
- Degree of protection acc. to IEC 60529
- IP30
- Limiting temperature
- -40 ... +125 °C
- Tightening torque
- 0.4 Nm ground connection || 0.4 Nm cover screw || 0.4 Nm Locking screw
Version
- 2 parts
- Yes
- Cable entry
- 3x
- Details
- Part number includes two dummy plugs
- ground connection
- With internal grounding block
- Locking type
- Knurled screw Thread M3
- Separable
- Yes
- Size
- D-Sub 5
- Strain relief
- An additional InduCom cable clamp or a crimp flange - ferrule combination is available dependant on the use of the cable.
- Version
- Top/side entry
