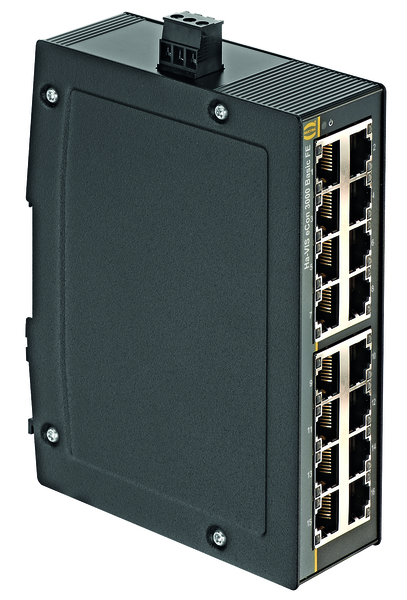

Harting 24030160010
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24 V DC, 48 V DC, Total number of ports: 16, 10/100 Mbit/s (RJ45-Ports): 16, Operating temperature: 0 ... +55 °CIndustrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24 V DC, 48 V DC, Total number of ports: 16, 10/100 Mbit/s (RJ45-Ports): 16
Harting 24030160010 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 19170130 Network switch (general application)
- European customs tariff number
- 85177000
- Net weight
- 675 g
- Packaging size
- 1
Ethernet ports copper
- 10/100 Mbit/s (RJ45-Ports)
- 16
- Auto-MDI(X)
- Yes
- Auto-negotiation
- Yes
- Auto-polarity
- Yes
- Data rate
- 10 Mbit/s || 100 Mbit/s
- Transmission length
- 100 m
- Transmission physics
- Twisted Pair Cat. 5
- Transmission standard
- 10BASE-Te || 100BASE-TX EEE
Identification
- Element
- Industrial Ethernet Switches
- Series
- Ha-VIS eCon 3000
- Specification
- Unmanaged
- Type of Ethernet
- Fast Ethernet
Material properties
- China RoHS
- e
- ELV status
- compliant
- Height
- 142 mm
- Length
- 107.5 mm
- Material (hood/housing)
- Aluminium (anodised) || Steel sheet (powder-coated)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Width
- 38 mm
Specifications and approvals
- Approvals
- DNV GL
- CE
- Yes
- EtherNet/IP
- Yes
- FCC
- Yes
- PROFINET
- Yes
- Specifications
- EN 55022 Radio disturbance characteristics || EN 61000-4-2 Electrostatic discharge (ESD) || EN 61000-4-3 Electromagnetic field || EN 61000-4-4 Rapid transients (burst) || EN 61000-4-5 Surge voltages || EN 61000-4-6 conducted disturbances || EN 61000-6-4 emission standard || IEC 60068-2-6 Vibration (sinusoidal)
- UL / CSA
- UL 508 NRAQ.E253944 || CSA-C22.2 No. 142 NRAQ7.E253944
Technical characteristics
- Air pressure
- ≥795 hPa
- Degree of protection acc. to IEC 60529
- IP30 mated condition
- MTBF
- 1360,000 h
- Operating temperature
- 0 ... +55 °C
- Relative humidity
- 0 ... 95 % Non-condensing (operation) || 0 ... 95 % Non-condensing (storage/transport)
- Storage temperature
- -40 ... +85 °C
Termination data
- Conductor cross-section
- AWG 28 ... AWG 12
- Nominal voltage
- 24 V DC || 48 V DC
- Number of contacts
- 3
- Operating current
- <92 mA @ 24 V DC || <48 mA @ 48 V DC
- Overcurrent protection
- 2 A At input
- Permissible voltage
- 9 ... 60 V DC
- Pinout
- + / - / FE
- Power consumption
- <2.21 W @ 24 V DC
- Reverse polarity proof
- Yes
- Starting current
- <1.6 A @ 24 V DC || <2.8 A @ 48 V DC
- Supply circuit
- SELV (Circuit Breaker 10 A)
- Surge protection
- Yes
- Termination method
- Pluggable screw contact
Version
- Energie Efficient Ethernet
- Yes
- Fixing
- 35 mm DIN rail acc. to EN 60715
- Flow control
- Off
- Frame size
- 2 kB
- MAC table size
- 8k Entries
- Non blocking
- Yes
- Pack contents
- Pluggable screw contact for power supply || Assembly instructions
- Packet buffer size
- 2 Megabit
- Quality of service
- Yes
- Signal contact
- No
- Switching technology
- Store and Forward
- Total number of ports
- 16
