Harnessflex CGS-M25
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

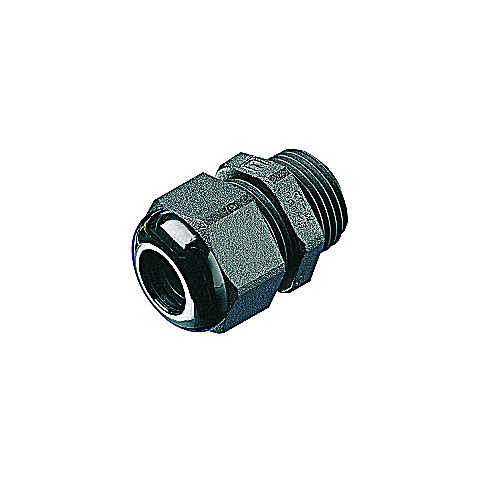

Straight Compression Cable Gland, M25 Thread, Cable Range 13.0 to 18.0mm, Fixed Male Threads, Length 40.0mm, Operating Temperature -40 to 120 Degrees C, RoHS Compliant, IP67, 68 Rating, Very High UV Protection, Polyamide (Nylon), Black
Harnessflex CGS-M25 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
European Specifications (ETIM)
- Bend radius protection/trumpet flare
- N
- Colour
- Black
- Degree of protection (IP)
- IP68
- EMC-version
- N
- ETIM
- EC000441 Cable screw gland
- Explosion-tested version
- N
- Flat cable coupling
- N
- For Ex-Zone dust
- null
- For Ex-zone gas
- null
- Glass-fibre reinforced
- N
- Halogen free
- Y
- Hexagon angular dimension
- 33mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Model
- Straight
- Nominal thread size metric/PG
- 25
- Operating temperature
- -40-+120°C
- Pitch thread
- 1.5mm
- RAL-number
- 9005
- Shock resistant
- N
- Strain relief
- N
- Suitable for cable diameter
- 13-18mm
- Surface protection
- Untreated
- Thread length
- 11mm
- Thread type
- Metric
- With locknut
- N
- Wrench width
- 30mm
North American Specifications (UNSPSC)
- Application
- Provide Secure Cable Connections Through Knockouts and Threaded Entries
- Brand Name
- Harnessflex
- Color
- Black
- Conductor Range
- 13-18mm
- IGCC
- 4601 Cable gland connector
- Insulation
- IP67, 68
- Material
- Polyamide/Nylon
- Size
- M25 Thread
- Special Features
- Very High UV Protection, Self Extinguishing, Low Smoke Toxicity and Halogen free
- Standard
- RoHS Compliant
- Temperature Rating
- -40 to 120 Degrees C
- Type
- Straight Compression Cable Gland
- UNSPSC
- 39121431 Cable gland connector
Packaging
- Outer Dimensions (inches)
- 1x1x1
- Outer Quantity
- 10
- Weight Uom
- 0.02 lbs. Each
