Enerpac SULD121
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

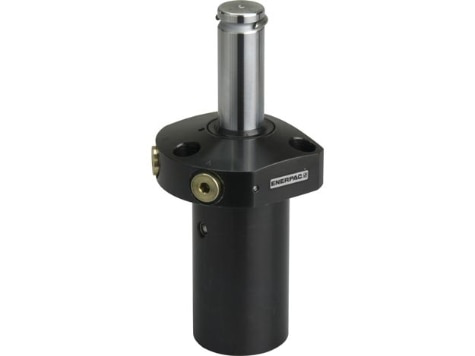

SULD121, 2600 lbs Force, Swing Clamp, Double-Acting, Left Turning, Upper Flange
Enerpac SULD121 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Dimension A
- 6.75 In | 171,5 Mm
- Dimension B
- 3.37 In | 85,7 Mm
- Dimension C
- 1.08 In | 27,4 Mm
- Dimension D
- 1.87 In | 47,5 Mm
- Dimension F
- 0.87 In | 22,2 Mm
- Dimension G
- SAE #4 In | SAE #4 Mm
- Dimension H
- 0.39 In | 9,9 Mm
- Dimension K
- 1.2 In | 30,4 Mm
Specifications
- Country of Origin
- United States
- News Feed Product Group
- Workholding Tools
- Product Line
- Workholding Tools
- Sub Types
- Swing Clamp - Upper Flange
- Type
- Workholding Clamp
- Weight
- 3.5 lbs | 1,6 kgs
Workholding Clamp
- Clamping Force
- 11,6 kN
- Clamp Mounting Style
- Upper Flange
- Clamp Return Type
- Double-Acting
- Clamp rotation Direction
- Left
- Cylinder Effective Area Clamp
- 4,06 cm³
- Cylinder Effective Area Clampin²
- 0.63
- Cylinder Effective Area Unclamp
- 7,94 cm³
- Cylinder Effective Area Un Clampin²
- 1.23
- Dimension C1
- 2.18 in | 55,3 mm
- Dimension D1
- 2.62 in | 66,4 mm
- Dimension D2
- 2.88 in | 73,2 mm
- Dimension N
- 0.99 in | 25,1 mm
- Dimension P
- 2 in | 51,4 mm
- Dimension Q
- .375-16 unc in | .375-16 unc mm
- Dimension S
- 2.048 in | 52,0 mm
- Dimension T
- 2.44 in | 61,8 mm
- Dimension U
- ø2.50 in | 63,5 mm
- Dimension V
- 0.347 in | 8,8 mm
- Dimension W
- 3.38 in | 85,9 mm
- Dimension X
- 18,2 mm
- Dimension Y
- 30 degrees in | 30 degrees mm
- Dimension Z
- 60 degrees in | 60 degrees mm
- Fixture Hole D3
- 49,0
- Manifold Oring
- 568-011
- Manifold Oring ARP No Or inside X Thickness
- 568-011
- Maximum Oil Flow
- 1,6 L/min
- Maximum Oil Flowin³ Minute
- 100 in
- Min Depth J2
- 20,3
- Mounting Thread JUNF
- .312-24 UNF
- Oil Capacity Clamp
- 11,47 cm³
- Oil Capacity Clampin³
- 0.7
- Oil Capacity Unclamp
- 22,94 cm³
- Oil Capacity Un Clampin³
- 1.4
- Standard Clamp Arm
- CAS121
- Stroke Clamping
- 12,7 mm
- Stroke Clampingin
- 0.5
