Enerpac RRH606
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

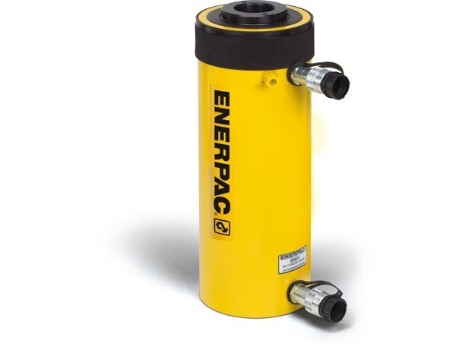

RRH606, 60 ton Capacity, 6.50 in Stroke, Double-Acting, Hollow Plunger Hydraulic Cylinder
Enerpac RRH606 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Holes Bolt Circle U
- 130,0 mm
- Base Mounting Holes Thread Depth Z
- 14,0 mm
- Base Mounting Holes Thread V
- 1/2" - 13
- Baseto Advance Port H
- 1.25 in | 31 mm
- Center Hole Diameter Y
- 2.13 in | 53,8 mm
- Collapsed Height A
- 12.75 in | 323 mm
- Collapsed Height A Ranges
- 10.0 - 14.99 in | 255 - 381 mm
- Collar Thread Length X
- 1.91 in | 48 mm
- Collar Thread W
- 6 1/4" - 12 in | 6 1/4"- 12 mm
- Cylinder Bore Diameter E
- 4.88 in | 123,9 mm
- Cylinder Class
- 60 Imperial Tons
- Cylinder Effective Area Advance
- 12.73 in² | 82,3 cm²
- Cylinder Effective Area Retract
- 8.37 in² | 54,2 cm²
- Cylinder Material
- Steel
- Extended Height B
- 19.25 in | 489 mm
- Maximum Cylinder Capacity Advance
- 64 Imperial Tons | 576 kN
- Maximum Cylinder Capacity Retract
- 42 Imperial Tons
- Maximum Cylinder Capacity Retractkn
- 380
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 82.77 in³ | 1366 cm³
- Oil Capacity Retract
- 54.24 in³ | 900 cm³
- Outside Diameter D
- 6.25 in | 159 mm
- Plunger Diameter F
- 3.63 in | 91,9 mm
- Plunger internal Threadin O
- 2 3/4" - 16 in
- Plunger internal Thread O
- 2 3/4"- 16 in
- Plunger Thread Length P
- 0.75 in | 19 mm
- Plunger Type
- Hollow
- Return Type
- Double-Acting, Hydraulic Return
- Saddle Diameter J
- 3.61 in | 91 mm
- Saddle Diameter J1
- 91 mm
- Saddle Protrusionfrom Plunger K
- 0.5 in
- Saddle Protrusion From Plunger K
- 12 mm
- Saddle Protrusionfrom Plunger K1
- 12 mm
- Stroke Ranges
- 4.5 - 6.99 in | 120 - 174 mm
- Surface Treatment
- Paint
- Top To Retract Port I
- 2.63 in | 66 mm
Specifications
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 86.42 lbs
- Sub Types
- Hollow Plunger Cylinder
- Type
- Hydraulic Cylinders
- Weight
- 78 lbs | 35 kgs
