Description

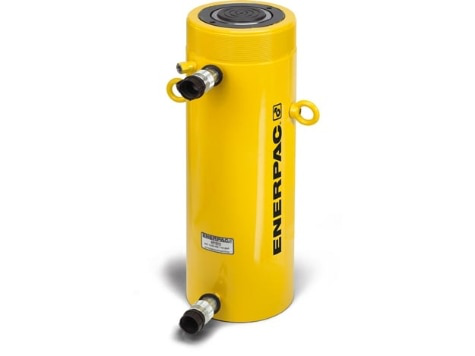

RR1502, 153.5 ton Capacity, 2.25 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Enerpac RR1502 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Holes Bolt Circle U
- "“ mm
- Base Mounting Holes Thread Depth Z
- "“ mm
- Baseto Advance Port H
- 0.88 in | 22 mm
- Collapsed Height A
- 7.19 in | 183 mm
- Collapsed Height A Ranges
- 5.0 - 9.99 in | 128 - 254 mm
- Collar Thread Length X
- "“ mm
- Collar Thread W
- "“ mm
- Cylinder Bore Diameter E
- 6.25 in | 158,8 mm
- Cylinder Class
- 150 Imperial Tons
- Cylinder Effective Area Advance
- 30.71 in² | 198,1 cm²
- Cylinder Effective Area Retract
- 14.8 in² | 95,4 cm²
- Cylinder Material
- Steel
- Extended Height B
- 9.44 in | 240 mm
- Maximum Cylinder Capacity Advance
- 153.5 Imperial Tons | 1386 kN
- Maximum Cylinder Capacity Retract
- 30 Imperial Tons
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 69.11 in³ | 1129 cm³
- Oil Capacity Retract
- 33 in³ | 544 cm³
- Outside Diameter D
- 8 in | 203 mm
- Plunger Diameter F
- 4.5 in | 114,3 mm
- Plunger Type
- Solid
- Return Type
- Double-Acting, Hydraulic Return
- Saddle Diameter J
- 3.67 in | 95 mm
- Saddle Diameter J1
- 95 mm
- Saddle Protrusionfrom Plunger K
- 0.06 in
- Saddle Protrusion From Plunger K
- 19 mm
- Saddle Protrusionfrom Plunger K1
- 19 mm
- Stroke Ranges
- 2.0 - 2.99 in | 48 - 94 mm
- Surface Treatment
- Paint
- Top To Retract Port I
- 2.63 in | 66 mm
Specifications
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 121.9 lbs
- Sub Types
- General Purpose Cylinder
- Type
- Hydraulic Cylinders
- Upsell item
- RAR1502
- Weight
- 110 lbs | 49 kgs
