Enerpac RD93
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

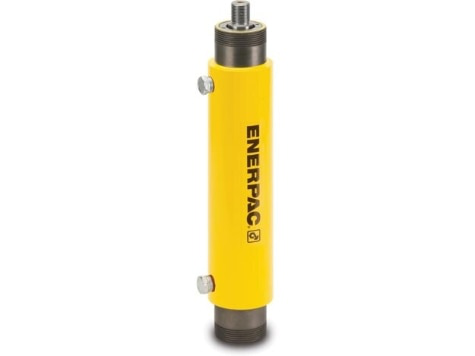

RD93, 9 ton Capacity, 3.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Enerpac RD93 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Baseto Advance Port H
- 2.27 in
- Body Length C
- 249 mm | 9.8 in
- Bottom To Advance Port I
- 57 mm
- Clevis Eye Mounting Dimension L
- 13.66 in | 346 mm
- Clevis Eye Mounting Dimension L1
- 16.79 in | 425 mm
- Clevis Eye Mounting Dimension M
- 38 mm
- Clevis Eye Mounting Dimension Min
- 1.5
- Collapsed Height A
- 10.78 in
- Collapsed Height A Ranges
- 10.0 - 14.99 in
- Collar Thread Length X
- 0.56 in | 14 mm
- Collar Thread W
- 2"-12 in
- Cylinder Bore Diameter E
- 1.5 in | 38,1 mm
- Cylinder Capacity Advance At 350 bar
- 40,0
- Cylinder Capacity Advance At 5000 Psi
- 9000 lbs
- Cylinder Capacity Retract At 350 bar
- 21,8
- Cylinder Capacity Retract At 5000 Psi
- 4910 lbs
- Cylinder Class
- 9 Imperial Tons
- Cylinder Effective Area Advance
- 1.77 in² | 11,4 cm²
- Cylinder Effective Area Retract
- 0.98 in² | 6,3 cm²
- Cylinder Material
- Steel
- Extended Height B
- 13.91 in | 353 mm
- internal Base Thread Length Z1
- 0.55 in | 14 mm
- internal Base Thread Z
- 1 11/16"-18 in
- Link Width N
- 1.5 in
- Maximum Cylinder Capacity Advance
- 9 Imperial Tons
- Maximum Cylinder Capacity Retract
- 5 Imperial Tons
- Maximum Operating Pressure Ranges psi
- 10000
- Neck Length N
- 38 mm
- Oil Capacity Advance
- 5.52 in³ | 90 cm³
- Oil Capacity Retract
- 3.07 in³ | 50 cm³
- Outside Diameter D
- 2.5 in | 63,5 mm
- Plunger Diameter F
- 1 in
- Plunger Outside Thread Q
- 3/4" - 16 in
- Plunger Protrusion K
- 25 mm
- Plunger Thread Length P
- 0.75 in | 22 mm
- Plunger Type
- Solid
- Return Type
- Double-Acting, Hydraulic Return
- Saddle Protrusionfrom Plunger K
- 0.98 in
- Stroke Ranges
- 3.0 - 4.49 in
- Surface Treatment
- Paint
- Top To Retract Port H
- 57 mm
- Top To Retract Port I
- 2.27 in
Specifications
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools, Workholding Tools
- Shipping Weight
- 10.85 lbs
- Sub Types
- General Purpose Cylinder
- Type
- Hydraulic Cylinders
- Weight
- 11 lbs | 4,2 kgs
