Enerpac RACH308
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

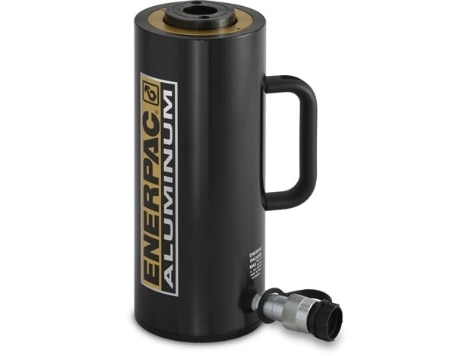

RACH308, 39.6 ton Capacity, 7.87 in Stroke, Aluminum Hollow Plunger Hydraulic Cylinder
Enerpac RACH308 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Holes Bolt Circle U
- 110 mm
- Base Mounting Holes Thread Depth Z
- 12 mm
- Base Mounting Holes Thread V
- M6
- Baseto Advance Port H
- 1.14 in | 29 mm
- Center Hole Diameter Y
- 1.34 in | 34 mm
- Collapsed Height A
- 15.56 in | 395 mm
- Collapsed Height A Ranges
- 15.0 - 19.99 in | 382 - 508 mm
- Cylinder Bore Diameter E
- 3.74 in | 95 mm
- Cylinder Class
- 30 Imperial Tons
- Cylinder Effective Area Advance
- 7.92 in² | 51,1 cm²
- Cylinder Material
- Aluminum
- Extended Height B
- 23.43 in | 595 mm
- Maximum Cylinder Capacity Advance
- 39.6 Imperial Tons | 358 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 62.35 in³ | 1022 cm³
- Outside Diameter D
- 5.12 in | 130 mm
- Plunger Diameter F
- 2.76 in | 70 mm
- Plunger Type
- Hollow
- Return Type
- Single-Acting, Spring Return
- Saddle Diameter J
- 2.76 in | 70 mm
- Saddle Diameter J1
- 70 mm
- Saddle Protrusionfrom Plunger K
- 0.4 in
- Saddle Protrusion From Plunger K
- 10 mm
- Saddle Protrusionfrom Plunger K1
- 10 mm
- Stroke Ranges
- 7.0 - 9.99 in | 175 - 239 mm
- Surface Treatment
- Anodized
Specifications
- Country of Origin
- India
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 30.25 lbs
- Sub Types
- Aluminum Hollow Plunger Cylinder
- Type
- Hydraulic Cylinders
- Weight
- 28.4 lbs | 12,9 kgs
