Enerpac RAC302
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

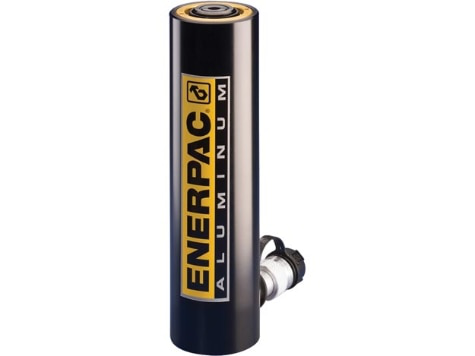

RAC302, 34.2 ton Capacity, 1.97 in Stroke, Aluminum Hydraulic Cylinder
Enerpac RAC302 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Holes Bolt Circle U
- 3.15 in | 80 mm
- Base Mounting Holes Thread Depth Z
- 12 mm
- Base Mounting Holes Thread V
- M6
- Baseto Advance Port H
- 1.31 in | 32 mm
- Collapsed Height A
- 7.13 in | 181 mm
- Collapsed Height A Ranges
- 5.0 - 9.99 in | 128 - 254 mm
- Cylinder Bore Diameter E
- 2.95 in | 75 mm
- Cylinder Class
- 30 Imperial Tons
- Cylinder Effective Area Advance
- 6.85 in² | 44,2 cm²
- Cylinder Material
- Aluminum
- Extended Height B
- 9.1 in | 231 mm
- Maximum Cylinder Capacity Advance
- 34.2 Imperial Tons | 309 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 13.49 in³ | 221 cm³
- Optional Tilt Saddle Addition To Collapsed Height A 1
- 0.43 in | 11 mm
- Optional Tilt Saddle Diameter J1
- 2.17 in
- Outside Diameter D
- 3.94 in | 100 mm
- Plunger Diameter F
- 2.36 in | 60 mm
- Plunger Type
- Solid
- Return Type
- Single-Acting, Spring Return
- Saddle Diameter J
- 1.61 in | 41 mm
- Saddle Diameter J1
- 55 mm
- Saddle Maximum Tilt Angle Radius Degrees
- 5
- Saddle Protrusionfrom Plunger K
- 0.12 in
- Saddle Protrusion From Plunger K
- 4 mm
- Stroke Ranges
- 1.0 - 1.99 in | 48 - 94 mm
- Surface Treatment
- Anodized
Specifications
- Country of Origin
- India
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 11.55 lbs
- Sub Types
- Aluminum Cylinder
- Type
- Hydraulic Cylinders
- Upsell item
- RAR302
- Weight
- 9.9 lbs | 4,5 kgs
