Description

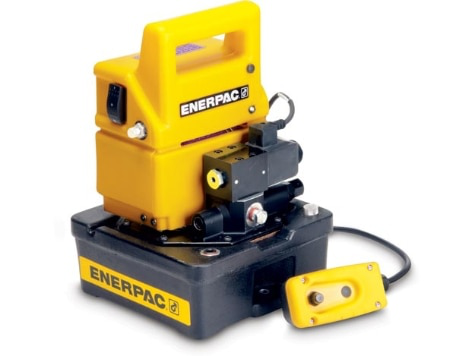

PUD1100B, Two Speed, Economy Electric Hydraulic Pump, Dump Valve, 115V, For use with Single-Acting Cylinders
Enerpac PUD1100B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Dimension A
- 9.62 In | 244 Mm
- Dimension B
- 9.62 In | 244 Mm
- Dimension C
- 14.25 In | 362 Mm
- Dimension D
- 4 In | 101 Mm
- Dimension E
- 4.72 In | 119 Mm
- Dimension F
- 8 In | 203 Mm
- Dimension H
- 0.4 In
- Dimension J
- 5.25 In | 133 Mm
Hydraulic Pump
- Current Draw Amps
- 9.5
- Cylinder Compatability
- Single-acting
- Duty Cycle
- Intermittent
- Maximum Flowat Rated Pressure
- 20 in3/min
- Maximum Flow At Rated Pressure
- 20 in³
- Maximum Flow At Rated Pressure imperial
- 20 in3/min
- Maximum Flow At Rated Pressure liter
- 0.32
- Maximum Flow At Rated Pressure metric
- 0,32 l/min
- Maximum Flow Rate Rangesat Rated Pressure
- 0 - 20 in³/min | 0 - 0,34 L/min
- Maximum Operating Pressure Ranges Bar
- 700
- Maximum Operating Pressure Ranges Psi
- 10000
- Motor Electrical Specification
- 115 V, 50/60 Hz
- Motor Size
- 0.5 HP
- Motor Voltage
- 115 V
- Output Flow Rate 1st Stage
- 200 in³/min | 3,31 L/min
- Output Flow Rate 2nd Stage
- 20 in³/min | 0,32 L/min
- Pressure Rating1st Stage bar
- 13
- Pressure Rating1st Stage Psi
- 200
- Pressure Rating2nd Stage bar
- 700
- Pressure Rating2nd Stage Psi
- 10000
- Pump Control
- Pendant
- Pump Operation
- Dump
- Pump Power Source
- Electric
- Reservoir Capacity
- 1900 cm³ | 116 in³
- Sound Leveld Ba
- 85
- Usable Oilcapacity
- 0.5 Gal
- Usable Oil Capacity
- 1,9 Litres
- Valve Function
- Advance / Retract
Specifications
- Country of Origin
- United States
- News Feed Product Group
- Pumps
- Product Line
- Industrial Tools
- Shipping Weight
- 32.52 lbs
- Sub Types
- Electric Pump - Economy
- Type
- Hydraulic Pump
- Upsell item
- XC1302SB
- Weight
- 26 lbs | 11,8 kgs
