Description

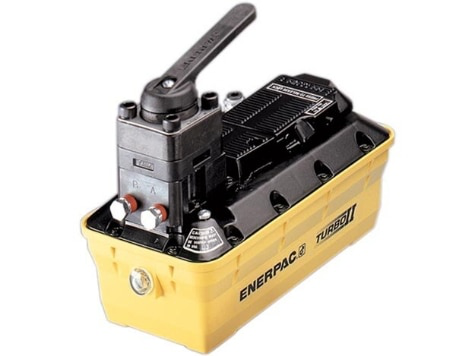

PAMG1402N, Turbo II Air Hydraulic Pump, 4/3 Manual Valve, 127 in³ Usable Oil, For use with Double-Acting Cylinders
Enerpac PAMG1402N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Dimension A
- 12.33 In | 313 Mm
- Dimension B
- 6.49 In | 165 Mm
- Dimension C
- 10.5 In | 267 Mm
- Dimension D
- 9.04 In | 230 Mm
- Dimension E
- 4 In | 102 Mm
- Dimension F
- 1.42 In | 36 Mm
- Dimension H
- 5.23 In | 130 Mm
- Dimension J
- 6 In | 152 Mm
Hydraulic Pump
- Air Consumption
- 340 L/min
- Air Pressure Range bar
- 2,8 - 8,8
- Cylinder Compatability
- Double-acting
- Dimension L
- 1.65 in | 113 mm
- Dimension M
- 315 mm
- Dimension Min
- 12.6
- Maximum Flowat Rated Pressure
- 10 in3/min
- Maximum Flow At Rated Pressure
- 10 in³
- Maximum Flow At Rated Pressure imperial
- 10 in3/min
- Maximum Flow At Rated Pressure liter
- 0.16
- Maximum Flow At Rated Pressure metric
- 0,16 l/min
- Maximum Flow Rate Rangesat Rated Pressure
- 0 - 20 in³/min | 0 - 0,34 L/min
- Maximum Operating Pressure Ranges Bar
- 700
- Maximum Operating Pressure Ranges Psi
- 10000
- Output Flow Rate Load
- 0,16 L/min
- Output Flow Rate No Load
- 1,0 L/min
- Pump Power Source
- Air
- Pump Valve Type
- 4-way, 3-position, Tandem Center
- Reservoir Capacity
- 2081 cm³ | 127 in³
- Usable Oil Capacity
- 127 in³ | 2081 cm³
- Valve Function
- Advance / Hold / Retract
- Valve Model
- VM4
- Valve Operation
- Manual
Specifications
- Country of Origin
- United States
- News Feed Product Group
- Pumps
- Product Line
- Industrial Tools
- Shipping Weight
- 21.15 lbs
- Sub Types
- Air Pump
- Type
- Hydraulic Pump
- Upsell item
- XA12VG
- Weight
- 24 lbs | 11,0 kgs
