Enerpac P801
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

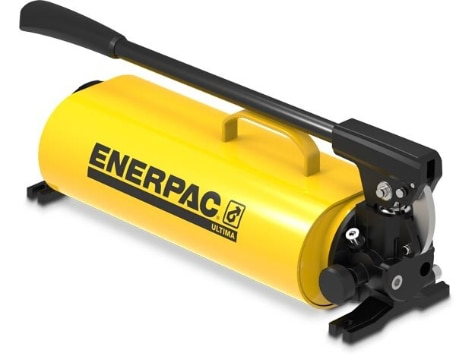

P801, Two Speed, ULTIMA Steel Hydraulic Hand Pump, 250 in³ Usable Oil
Enerpac P801 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Dimension A
- 16.83 In | 428 Mm
- Dimension B
- 20.12 In | 511 Mm
- Dimension C
- 1.18 In | 30 Mm
- Dimension D
- 1.38 In | 35 Mm
- Dimension E
- 2.17 In | 55 Mm
- Dimension H
- 23.5 In | 579 Mm
- Dimension J
- 18.11 In | 460 Mm
Hydraulic Pump
- Cylinder Compatability
- Single-acting
- Dimension L
- 7.65 in | 195 mm
- Dimension N
- 5.91 in | 150 mm
- Dimension P
- 4.76 in | 121 mm
- Dimension Q
- 1.65 in | 42 mm
- Dimension S
- 0.33 in | 8,4 mm
- Dimension T
- 2.93 in | 74 mm
- Maximum Flowat Rated Pressure
- .15 in3/stroke
- Maximum Flow At Rated Pressure
- 0.15 in³
- Maximum Flow At Rated Pressure imperial
- .15 in3/stroke
- Maximum Flow At Rated Pressure liter
- 0.00246
- Maximum Flow At Rated Pressure metric
- 2,46 cm3/stroke
- Maximum Flow Rate Rangesat Rated Pressure
- 0 - 20 in³/min
- Maximum Handle Effort
- 77 lbs
- Maximum Handle Effortkg
- 35
- Maximum Operating Pressure Ranges Bar
- 700
- Maximum Operating Pressure Ranges Psi
- 10000
- Oil Displacement Per Stroke
- - in³ | '- cm³
- Oil Displacement Per Stroke 1st Stage
- 1 in³ | 16,39 cm³
- Oil Displacement Per Stroke 2nd Stage
- 0.15 in³ | 2,46 cm³
- Piston Stroke
- 1 in | 25,4 mm
- Pressure Rating1st Stage bar
- 34
- Pressure Rating1st Stage Psi
- 500
- Pressure Rating2nd Stage bar
- 700
- Pressure Rating2nd Stage Psi
- 10000
- Pump Power Source
- Manual
- Pump Type
- Two Speed
- Reservoir Capacity
- 4100 cm³ | 250 in³
- Usable Oil Capacity
- 250 in³ | 4100 cm³
- Valve Operation
- Manual
Specifications
- Country of Origin
- China
- News Feed Product Group
- Pumps
- Product Line
- Industrial Tools
- Shipping Weight
- 36.5 lbs
- Sub Types
- Hand Pump - Two Speed
- Type
- Hydraulic Pump
- Upsell item
- P462
- Weight
- 31 lbs | 14,1 kgs
